Alternator Failure Symptoms: 10 Warning Signs, How to Test It & What to Do

An alternator rarely fails without leaving clues. A battery warning light, dimming headlights, strange electrical behavior, repeated dead batteries, unusual noises, or difficulty starting can all point toward a charging-system problem—but none of these symptoms, by itself, proves that the alternator is the culprit.

The key is to read the symptoms as a pattern. The alternator, battery, serpentine belt, voltage regulator, wiring, grounds, and starter work as an interconnected system, so accurate diagnosis means tracing that relationship rather than replacing the first part that appears suspicious.

What Are the Most Common Alternator Failure Symptoms?

The most common signs of a failing alternator include a battery or charging-system warning light, dim or flickering headlights, malfunctioning electrical accessories, repeated battery discharge, starting problems, unusual noises, burning smells, warning lights or electronic glitches, and engine stalling in severe cases. Symptoms that become worse at idle or under heavy electrical load can provide another important clue.

A crucial distinction is that alternator symptoms are not the same thing as an alternator diagnosis. A weak battery, damaged cable, poor ground, slipping serpentine belt, faulty voltage regulator, blown fuse, or other charging-system fault can produce similar signs. DENSO’s charging-system troubleshooting procedure, for example, calls for inspection of the battery, belt, wiring, voltage drop, and alternator output rather than testing the alternator in isolation.

What Does an Alternator Do in a Car?

The alternator is the vehicle’s primary source of electrical power while the engine is running. It converts mechanical energy from the engine into electrical energy, supplies the vehicle’s electrical systems, and replenishes energy used from the battery during starting and other operations.

Understanding that relationship makes alternator diagnosis much easier. The battery stores electrical energy; the alternator generates electrical energy while the engine runs. If the alternator cannot maintain adequate output, the vehicle increasingly depends on the battery until the battery’s available energy is exhausted.

Alternator vs Battery: They Do Different Jobs

A battery’s most familiar job is providing the high current needed to operate the starter motor and crank the engine. It also supplies electrical energy when the engine is off and helps stabilize the vehicle’s electrical system.

The alternator takes over much of the electrical workload once the engine is running. Its output is produced as the engine turns the alternator through the serpentine belt or another belt-drive arrangement. Internally, components such as the rotor, stator, rectifier and voltage regulator work together to produce and control usable electrical power.

That is why replacing a dead battery does not necessarily solve a charging problem. If the alternator is not replenishing the replacement battery, the new battery can eventually become discharged too.

What Happens When the Alternator Stops Charging?

The failure sequence is straightforward:

Alternator output falls → the battery supplies more of the vehicle’s electrical demand → battery charge decreases → system voltage can fall → electrical functions become unstable → the engine may eventually stop.

The exact progression varies by vehicle, battery condition, electrical load and failure mode. Modern vehicles can also have electrically powered systems that increase the consequences of low voltage.

10 Signs Your Alternator May Be Failing

The strongest diagnosis usually comes from several symptoms appearing together. A single dim headlight, for example, may have nothing to do with the alternator; dim lights combined with a charging warning, repeated battery discharge and abnormal voltage are much more meaningful.

1. The Battery or Charging-System Warning Light Comes On

The battery-shaped warning light is one of the most important early clues, but its meaning is frequently misunderstood. It generally indicates a problem with the charging system, not necessarily a defective battery.

The alternator may be undercharging, overcharging, or failing to communicate correctly with the vehicle’s charging controls. Other possibilities include a damaged belt, wiring fault, poor electrical connection, fuse or fusible-link problem, or voltage-regulation issue. DENSO’s troubleshooting chart lists several of these possibilities alongside a faulty alternator.

If the light appears while driving, especially alongside dimming lights, unusual electrical behavior or a burning smell, treat it as an important warning rather than an inconvenience. Continuing to drive may eventually leave the vehicle without enough electrical power to keep running.

Key takeaway: A battery warning light means “investigate the charging system,” not automatically “replace the battery.”

2. The Headlights Become Dim or Flicker

Headlights can provide a surprisingly useful visual clue because they respond to changes in electrical supply. A failing charging system may cause the headlights to become noticeably dimmer, fluctuate in brightness, or behave differently as engine speed and electrical load change.

Pay particular attention if the lights become dimmer at idle and appear brighter when engine speed rises. That pattern can suggest that charging output is struggling at lower engine speeds, although it is not conclusive by itself. AutoZone identifies dim or flickering headlights—particularly at idle or with multiple accessories operating—as a common alternator warning sign.

The distinction matters because a lighting problem can also originate in the bulb, socket, wiring, ground or lighting control system. Look for the broader electrical pattern rather than treating one lamp as proof of alternator failure.

3. Electrical Accessories Start Acting Strangely

When system voltage becomes unstable, seemingly unrelated electrical components can begin behaving unpredictably. Power windows may move more slowly, the blower motor may feel weaker, the radio may cut out, an infotainment screen may reboot, or dashboard illumination may fluctuate.

Modern vehicles contain numerous electronic control modules that depend on stable electrical power. A charging-system problem can therefore create a collection of minor-looking symptoms that initially seem unrelated.

This is particularly useful diagnostically: several electrical abnormalities occurring at approximately the same time are more significant than one isolated accessory problem. AutoZone lists erratic electrical accessories among the common warning signs of a failing alternator.

If these symptoms appear together with a battery warning light or abnormal charging voltage, the charging system should move high on the diagnostic list.

4. The Battery Keeps Going Dead

A repeatedly dead battery is one of the classic clues—but it is also one of the easiest symptoms to misinterpret.

If the alternator is not supplying adequate charging current while the engine runs, the battery may gradually lose its state of charge. The vehicle may start normally after charging or jump-starting, yet become difficult to start again after additional driving.

This creates an important diagnostic pattern:

Battery dies repeatedly + charging output is abnormal = investigate the alternator and charging circuit.

However, repeated battery discharge can also result from a defective battery, loose connections, parasitic electrical drain or another charging-system fault. DENSO recommends checking battery condition and connections as part of charging-system diagnosis rather than assuming the alternator is automatically responsible.

If the battery has recently been replaced but the problem continues, testing the charging system becomes even more important.

5. The Car Is Difficult to Start or Cranks Slowly

A failing alternator can cause starting trouble indirectly. The starter needs substantial electrical power, and if the alternator has failed to replenish the battery, the battery may eventually become too weak to crank the engine effectively.

A slow crank therefore does not automatically mean the starter motor is bad.

Consider the sequence. If the vehicle starts normally after the battery has been charged or jump-started but soon develops another electrical problem, the charging system deserves attention. Conversely, if the vehicle consistently struggles after sitting overnight but operates normally once started, battery condition becomes more suspicious.

The symptoms overlap enough that testing is preferable to guessing. AutoZone likewise cautions that a weak battery can mimic many symptoms associated with alternator failure.

6. You Hear Whining, Grinding, Growling or Squealing

Mechanical noise can reveal an alternator problem before electrical symptoms become obvious. Alternator bearings rotate at high speed and remain under continuous belt-driven load, so wear can produce whining, growling or grinding sounds that change with engine speed.

A squealing noise can point more toward belt slip, pulley problems or insufficient belt tension. DENSO lists abnormal noise alongside insufficient belt tension and faulty bearings in its charging-system troubleshooting chart.

Noise should therefore be interpreted rather than simply labeled “bad alternator.” A worn serpentine belt, tensioner or another accessory pulley can create remarkably similar sounds.

A useful clue is whether the sound changes directly with engine RPM. If it does, inspect the belt-drive system and alternator pulley rather than assuming the electrical components are responsible.

7. You Smell Burning Rubber or Electrical Odor

A new burning smell under the hood deserves attention because both mechanical and electrical problems can generate it.

A slipping serpentine belt can become hot as it loses traction against a pulley. An overheating alternator or electrical connection can create a different, sharper electrical odor. Fluid contamination from an engine-bay leak can also damage alternator components and contribute to overheating or internal failure.

The smell should be interpreted alongside what you can see and hear. Belt glazing, visible belt damage, smoke, abnormal noise or an illuminated charging warning all increase the urgency.

If there is active smoke, severe overheating, or a strong electrical burning smell, continuing to drive is not a sensible diagnostic experiment. Stop safely and have the vehicle inspected.

8. The Engine Stalls While You’re Driving

Engine stalling is among the more serious consequences of charging-system failure. As alternator output disappears, the battery becomes the vehicle’s remaining electrical energy source. Once available voltage falls far enough, critical electronic systems may no longer operate correctly.

A vehicle can therefore begin with a relatively harmless-looking warning light and eventually reach a point where the engine stalls. AutoZone identifies stalling as a potential result of a depleted battery following alternator failure.

Stalling is particularly concerning because the consequences are not limited to inconvenience. Loss of electrical power can affect other electrically dependent vehicle systems, and some modern vehicles use electrically assisted systems that can change steering effort when power is lost.

If a vehicle is already showing charging-system warnings and begins stalling or losing electrical functions, professional assistance is preferable to attempting a long drive home.

9. Warning Lights or Electronic Errors Appear

A modern vehicle is less like a collection of independent electrical accessories and more like a network of computers sharing a common electrical environment. When system voltage becomes unstable, several modules can react.

You might see multiple warning lights, electronic error messages, intermittent dashboard behavior or an apparently unrelated check-engine light. These symptoms do not prove alternator failure, but they can be meaningful when they occur alongside charging-system symptoms.

The important diagnostic principle is simple: voltage instability can create secondary symptoms that look like separate faults.

This is one reason a professional diagnosis should consider the charging system before replacing multiple electronic components. The underlying voltage problem may be the common thread connecting apparently unrelated warnings.

10. Symptoms Get Worse at Idle or Under Heavy Electrical Load

A charging system may appear acceptable during light electrical demand but struggle when the vehicle is idling with headlights, blower motor, defroster, air conditioning or other equipment operating.

This pattern is particularly useful because it reveals the relationship between electrical demand and alternator output. If symptoms become more pronounced when several accessories are switched on, the charging system should be tested under load rather than only at rest.

DENSO’s charging-system procedure specifically calls for checking alternator output around 2,000 RPM and repeating the test with electrical loads such as headlights, blower motor and defrosters operating.

A crucial caveat applies to modern vehicles: charging voltage can be deliberately managed by the vehicle’s electronic control system. Therefore, a single universal voltage target should never replace the vehicle manufacturer’s specifications.

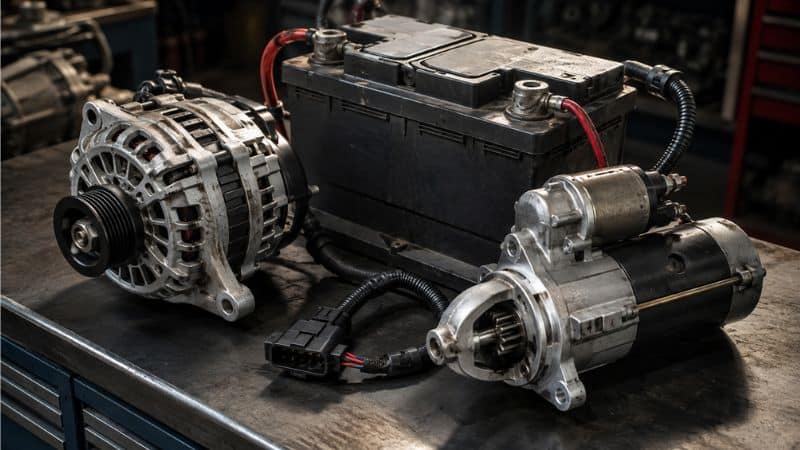

Is It the Alternator, Battery or Starter?

Alternator, battery and starter symptoms overlap enough to create confusion. The fastest path to a correct diagnosis is to compare the behavior of the vehicle over time, then confirm the suspected fault with testing. Because starting problems can involve the battery, alternator, or starter, it can also help to learn how to test a starter before replacing one.

Bad Alternator vs Bad Battery

A bad battery primarily struggles to store or deliver electrical energy. A bad alternator struggles to generate and regulate the electrical power required while the engine is running.

A jump-start is not proof that the alternator is healthy. It simply supplies enough temporary energy to get the engine running. If the alternator remains unable to recharge the battery, the same problem can return.

AutoZone similarly recommends testing the battery and alternator rather than relying only on symptoms because the two conditions can mimic one another.

Bad Alternator vs Bad Starter

The starter’s primary job is to crank the engine. The alternator’s primary job is to supply electrical power and recharge the battery once the engine is running.

That difference provides a useful diagnostic clue. If you hear a click or experience a weak crank but the vehicle’s electrical system is otherwise healthy, the starter, battery or connections may deserve attention. If the vehicle starts but then develops dimming lights, charging warnings or repeated battery discharge, the alternator or charging system becomes more suspicious.

Again, these are clues rather than verdicts. Battery condition, cables and grounds can affect both starting and charging performance.

Alternator vs Serpentine Belt Problem

The alternator can be perfectly healthy internally yet fail to charge properly if the belt driving it is loose, worn, glazed, damaged or slipping.

That is why a belt inspection belongs near the beginning of charging-system diagnosis. DENSO specifically recommends checking belt condition, alignment and tension before condemning the alternator.

A squealing belt, visible belt damage or charging problems that become worse under load can make the belt-drive system particularly suspicious. The alternator and belt should be treated as parts of the same mechanical chain rather than separate subjects.

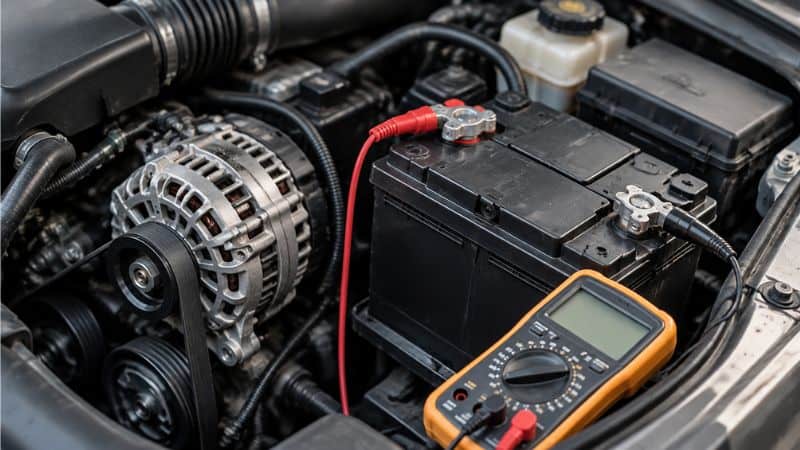

How to Test an Alternator at Home

A digital multimeter can provide useful information about the charging system, but a voltage reading is only one piece of the diagnosis. The most reliable approach combines visual inspection, battery condition, charging voltage, electrical load and voltage-drop testing.

Step 1: Inspect the Battery and Connections

Start with the simple things. Examine the battery terminals, major charging cables, grounds, alternator connections and serpentine belt.

Look for corrosion, looseness, damaged insulation, fraying, belt glazing or obvious physical damage. DENSO’s diagnostic procedure begins with visual inspection and specifically includes battery connections, belt condition, cable condition and wiring damage.

A charging system cannot perform correctly if electrical power cannot travel efficiently between the alternator, battery and vehicle ground.

Step 2: Measure Battery Voltage With the Engine Off

Set a digital multimeter to DC voltage and measure across the battery terminals.

A resting-voltage reading can tell you whether the battery has an adequate state of charge for meaningful testing, but it cannot by itself prove that the alternator is good or bad. A deeply discharged battery may need to be charged before the charging-system test can be interpreted reliably.

This distinction is important because battery voltage and alternator performance are related but not interchangeable measurements.

Step 3: Measure Charging Voltage With the Engine Running

Start the engine and measure voltage at the battery terminals again.

On many conventional systems, running voltage will be higher than resting battery voltage. DENSO’s general test procedure calls for approximately 13–15 volts at the battery and alternator around 2,000 RPM, while emphasizing that the vehicle service manual should be used for the correct specification.

Do not turn one number into a universal rule. Modern smart-charging systems can intentionally vary voltage according to operating conditions, battery state and vehicle strategy.

Step 4: Test Under Electrical Load

Turn on appropriate electrical loads according to the vehicle and test procedure, such as headlights, blower motor and defroster.

Observe whether system voltage remains within the manufacturer’s expected range. DENSO specifically incorporates loaded testing into its charging-system procedure.

A charging system that looks acceptable under light demand but collapses under load deserves further investigation.

Step 5: Perform Voltage-Drop Tests

Voltage-drop testing is one of the most valuable—and frequently overlooked—ways to distinguish an alternator problem from a wiring or connection problem.

DENSO’s procedure checks both the positive and negative sides of the charging circuit and uses 0.2 volts or less as its guideline for each side in the described test. Excessive voltage drop indicates resistance in cables or connections rather than automatically proving alternator failure.

This is a powerful diagnostic distinction: an alternator may produce adequate voltage at its output terminal while the battery receives substantially less because resistance exists between the two points.

What a Bad Reading Actually Means

A low charging reading can be caused by a failed alternator, but it can also result from:

That is why the strongest diagnostic process follows the entire charging path instead of treating a multimeter reading as a parts-replacement command. DENSO’s troubleshooting chart explicitly lists battery, belt, wiring, fuses, electrical load and alternator faults as possible causes of charging problems.

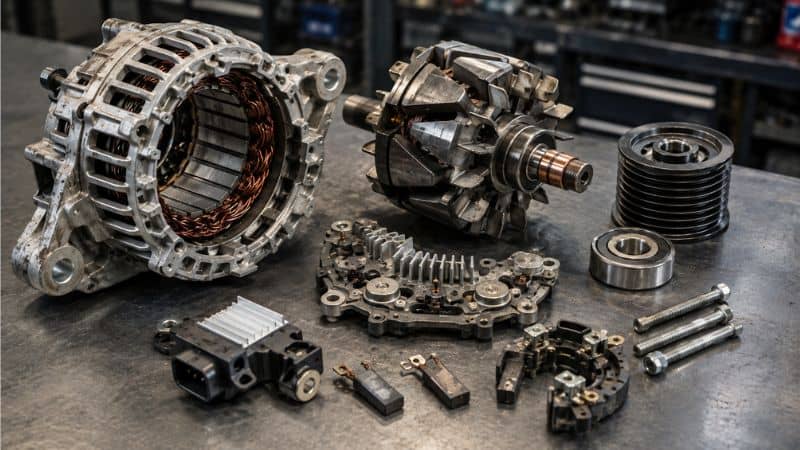

What Causes an Alternator to Fail?

An alternator contains several components that can wear, overheat or become electrically damaged. Understanding the failure mechanism makes the symptoms easier to interpret and can also prevent a replacement alternator from suffering the same fate. Understanding why an alternator fails becomes easier when you know the role of its alternator parts and their functions.

Worn Brushes

Brushes maintain electrical contact with the rotating components inside some alternator designs. Over time, wear can reduce reliable contact and produce intermittent charging or complete loss of output.

Brush wear can sometimes be repaired without replacing the entire alternator, depending on the alternator’s construction and the condition of the remaining components.

Failed Diodes or Rectifier

The alternator generates AC electricity internally, while the vehicle’s electrical system requires DC power. The rectifier uses diodes to convert the generated current into usable DC output.

A failed diode can reduce charging performance and introduce unwanted electrical noise into the system.

Faulty Voltage Regulator

The voltage regulator controls alternator output so that the charging system does not simply produce uncontrolled voltage.

A regulator problem can therefore create either undercharging or overcharging, along with unstable voltage. On modern vehicles, charging control may involve additional sensors and electronic control modules rather than a simple standalone regulator.

Worn Bearings

Alternator bearings operate continuously at high rotational speed. As they deteriorate, whining, growling or grinding can develop, often changing with engine RPM.

A noisy bearing can eventually create mechanical damage even if charging output initially remains acceptable.

Heat Damage

The alternator operates in an inherently hot, vibrating environment. Excessive heat can degrade insulation and internal electrical components.

Heat can also be a consequence of another problem. A charging system working excessively hard because of a weak battery or heavy electrical demand may experience additional thermal stress.

Belt or Pulley Problems

The alternator depends on its mechanical drive. A slipping, worn or misaligned serpentine belt can prevent the alternator from reaching the rotational speed required for adequate output.

DENSO lists insufficient belt tension and worn belts among causes of batteries not charging and abnormal noise.

Fluid Contamination

Oil, coolant or other fluids reaching the alternator can contaminate internal components, contribute to corrosion and potentially damage electrical windings.

A replacement alternator installed without correcting the leak that damaged the original may simply become the next failed component. AutoZone identifies fluid contamination, heat, overloading and belt problems among recognized causes of premature alternator failure.

Can an Alternator Fail by Overcharging?

Alternator failure does not always mean insufficient voltage. A regulator or control-system fault can allow charging voltage to rise excessively, creating an overcharging condition that can be as damaging as undercharging.

Symptoms of Undercharging

Undercharging can produce dim or flickering lights, repeated battery discharge, slow starting, warning lights and eventually engine stalling.

The central problem is inadequate energy replenishment: the vehicle consumes electrical energy faster than the charging system can replace it.

Symptoms of Overcharging

Overcharging can produce unusually high system voltage, abnormal electrical behavior, battery overheating or premature battery damage. Excessive voltage can also place stress on vehicle electronics and potentially cause fuse or component problems.

A voltage reading that is consistently above the vehicle manufacturer’s specified range should therefore be investigated rather than interpreted as “a strong alternator.”

More voltage is not automatically better. The charging system is designed to operate within a controlled range appropriate to the vehicle.

Is It Safe to Drive With Alternator Failure?

Driving with a failing alternator is risky because the vehicle may eventually rely entirely on the remaining charge in the battery. There is no dependable universal time or distance that a car can travel after alternator failure. A severely depleted battery can eventually leave the engine without enough electrical power, which is one reason why a car shuts off while driving.

The available driving time depends on battery state of charge, electrical demand, vehicle design, driving conditions and the exact nature of the charging failure. Modern vehicles may also use electrically powered systems that increase the rate at which stored energy is consumed.

What the Risk Looks Like

A vehicle may initially appear to drive normally after an alternator begins failing. Then headlights can dim, warning lights can appear, electrical accessories can stop working, and the engine can eventually stall.

That progression is why a battery light should not be treated as a reminder to “check it later.” The vehicle can move from apparently normal operation to an inconvenient or dangerous breakdown without giving you a predictable countdown.

If charging-system symptoms are accompanied by stalling, severe electrical malfunction, smoke or a strong burning odor, stopping safely and arranging professional assistance is the prudent choice.

What Should You Do If the Battery Light Comes On While Driving?

A battery-shaped warning light appearing while driving means the charging system deserves immediate attention. The safest response is to reduce unnecessary electrical demand and avoid treating the warning as something that can simply be ignored.

If the vehicle is still operating normally, move toward a safe location or appropriate repair facility without unnecessary detours. Turn off nonessential electrical accessories where practical, but keep safety-critical equipment operating as needed.

If the vehicle begins losing electrical power, stalling, overheating, producing smoke or developing severe mechanical noise, pull over safely and seek professional assistance rather than attempting to stretch the remaining battery charge.

The warning light itself does not identify which component has failed. The battery, alternator, belt, wiring, fuse, regulator or another part of the charging system may be responsible. AAA similarly treats the battery/charging-system warning light as a reason for prompt attention because an alternator failure can eventually leave the vehicle unable to continue running.

Can Alternator Failure Ruin the Battery?

Yes. Alternator failure can damage a battery indirectly through repeated undercharging or directly through excessive charging voltage. Because low system voltage can affect engine electronics, understanding how the ignition system works provides useful context.

An undercharging alternator leaves the battery chronically below full charge. Repeated deep discharge can reduce battery capacity and shorten its useful life. Conversely, an overcharging condition can expose the battery to excessive voltage and heat, potentially causing damage.

This creates an important repair principle: when an alternator fails, test the battery rather than assuming it survived the failure.

A battery can sometimes appear acceptable based on resting voltage while still performing poorly under load. That is why a proper battery test should accompany charging-system diagnosis, particularly when the vehicle has experienced repeated discharge.

Should You Repair or Replace a Bad Alternator?

Whether an alternator should be repaired or replaced depends on its construction, failure mode, component condition, parts availability, labor cost and warranty considerations. The cheapest-looking repair is not always the best long-term solution.

When Repair May Make Sense

A rebuild or component-level repair can make sense when a replaceable regulator, brush assembly, bearing or rectifier has failed and the remaining alternator components are in good condition.

For older or easily serviceable alternators, repairing a specific failed component may be economically sensible. Brush replacement, for example, can be appropriate when the rest of the alternator remains mechanically and electrically sound.

When Replacement Is Usually More Practical

Replacement often makes more sense when the alternator has extensive internal wear, bearing damage, burnt windings, severe contamination or multiple failing components.

Labor is another consideration. If removing the alternator is time-consuming, rebuilding one component today only to discover another internal failure later may not provide good value.

New vs Remanufactured Alternator

A remanufactured alternator can offer a lower-cost alternative to a new unit, but quality varies by supplier and warranty. A replacement should match the vehicle’s electrical specifications and control strategy.

The most important question is not simply “new or rebuilt?” It is whether the replacement is appropriate for the vehicle and whether the original cause of failure has been corrected.

How Much Does It Cost to Replace an Alternator?

Alternator replacement cost varies widely because the vehicle determines both the part and the labor involved. The alternator itself can differ substantially in design, output rating and availability, while labor can change dramatically depending on how accessible the unit is.

The final repair bill may include more than the alternator. A damaged serpentine belt, tensioner, battery, wiring repair, diagnostic charge or related component may also need attention.

For that reason, a useful estimate should separate parts cost, labor, diagnostic work and related repairs rather than presenting one universal price.

When comparing estimates, ask whether the quoted alternator is new or remanufactured, what warranty is included, whether the battery was tested, and whether the belt and charging cables were inspected.

What Happens If You Keep Driving With a Failing Alternator?

Alternator problems often develop as a progression rather than a single dramatic event.

Early stage: The warning light may appear intermittently. Lights may flicker, and electrical behavior may change under load.

Developing stage: The battery becomes progressively undercharged. Starting becomes harder, electrical accessories may behave erratically, and warning messages may multiply.

Severe stage: The battery has insufficient energy to support the vehicle. Critical electrical systems can become unstable, and the engine may stall.

Complete failure: The vehicle may no longer start after the battery is depleted.

This progression explains why early diagnosis has practical value. Catching a charging problem while the vehicle still operates normally gives you more options than waiting until the battery is completely depleted beside the road.

Alternator Failure Diagnosis: A Simple Decision Tree

The most useful diagnostic question is not “Which symptom means bad alternator?” but “What combination of symptoms and test results points toward the charging system?”

Battery or charging light ON?
→ Test the charging system rather than automatically replacing the battery.

Headlights dim or flicker while driving?
→ Check charging output, belt condition, connections and grounds.

Battery repeatedly dies?
→ Test battery condition, alternator output and possible parasitic drain.

Vehicle starts after a jump but soon loses electrical power?
→ Suspect a charging-system problem and test the alternator.

Charging voltage is abnormal?
→ Check alternator, regulator/control system, belt, wiring and vehicle-specific specifications.

Voltage at the alternator is acceptable but battery voltage is substantially lower?
→ Investigate voltage drop, cables and connections.

Charging voltage appears normal but the battery repeatedly dies?
→ Test battery condition and investigate parasitic drain or intermittent charging faults.

Noise occurs but charging output is normal?
→ Inspect bearings, pulley, belt and tensioner; electrical output alone cannot rule out mechanical alternator failure.

This approach turns a collection of symptoms into a diagnostic pathway. It also prevents the expensive habit of replacing parts simply because they are associated with the symptom.

7 Mistakes People Make When Diagnosing Alternator Problems

Alternator diagnosis becomes unnecessarily expensive when symptoms are treated as proof rather than evidence. The charging system is a chain, and one weak link can imitate another.

Replacing the Battery Without Testing the Charging System

A new battery may temporarily mask an alternator problem because it starts with a full charge. If the alternator remains unable to recharge it, the same symptom will return.

Assuming the Battery Light Means “Bad Battery”

The warning lamp is fundamentally a charging-system warning. The alternator, belt, wiring, regulator and related components can all be involved.

Treating a Jump-Start as Proof the Alternator Works

A jump-start only provides enough temporary energy to start the vehicle. It does not establish that the alternator is producing the correct output once the engine is running.

Ignoring the Serpentine Belt

A damaged, loose or slipping belt can prevent an otherwise functional alternator from producing adequate charging output.

Testing Voltage Without Considering Electrical Load

A charging system may appear acceptable under light demand but struggle when headlights, blower motor and defroster are operating. Loaded testing provides a more useful picture.

Ignoring Wiring and Ground Voltage Drop

A healthy alternator cannot compensate for excessive resistance between itself and the battery. DENSO’s procedure specifically incorporates positive- and negative-side voltage-drop tests for this reason.

Assuming One Voltage Number Fits Every Modern Vehicle

Smart charging systems can vary their strategy according to operating conditions. Manufacturer specifications should therefore take precedence over generic internet voltage rules.

Why Modern Alternators Can Be Harder to Diagnose

Modern charging systems can be more sophisticated than the traditional alternator-and-battery arrangement many drivers remember. Vehicle computers, battery sensors and electronically controlled charging strategies can influence alternator output.

That means a particular voltage reading may be normal under one operating condition and abnormal under another. A technician may need to consider battery state, engine speed, temperature, electrical load and communication between the charging system and vehicle control modules.

This does not make multimeter testing useless; it makes context more important.

The best diagnostic approach is therefore to compare actual measurements with the manufacturer’s service information and examine the entire charging circuit. DENSO’s procedure similarly combines visual inspection, battery testing, belt inspection, cable checks, voltage-drop measurements and alternator output testing.

When Should You Take the Car to a Mechanic?

Professional diagnosis becomes especially important when the battery or charging warning remains illuminated, the engine stalls, electrical systems behave erratically, charging voltage is outside specification, or you notice burning smells or significant mechanical noise.

A technician can test the battery under load, measure alternator output, inspect the serpentine belt, check charging cables and grounds, perform voltage-drop testing, and investigate control-system faults.

This matters because a replacement alternator is not always the correct repair. DENSO’s troubleshooting chart demonstrates why: insufficient belt tension, battery connections, blown fuses, wiring faults, excessive electrical load and regulator faults can all produce charging symptoms.

A good diagnosis should answer two questions: What failed? and Why did it fail? The second question is what helps prevent a repeat failure.

Frequently Asked Questions About Alternator Failure Symptoms

What are the first signs of alternator failure?

The earliest signs often include a battery or charging-system warning light, dimming or flickering lights, electrical accessories behaving inconsistently, or a battery that repeatedly loses charge. Some vehicles also develop whining noises or problems that become worse at idle. These signs are clues, not definitive proof, so battery condition, wiring, belt condition and charging output should be checked.

What does a bad alternator sound like?

A failing alternator may produce whining, grinding or growling noises that change with engine speed, particularly when its bearings or pulley are worn. A squealing sound can instead indicate belt slip or tension problems. Because other pulleys and accessories can create similar noises, sound alone cannot confirm alternator failure; inspect the entire belt-drive system before replacing parts.

Can a bad alternator cause a car to stall?

Yes. When alternator output becomes insufficient, the battery gradually supplies more of the vehicle’s electrical demand. As stored energy is depleted, system voltage can fall far enough that electronic engine-management systems and other critical components cannot operate correctly. The engine may then stall, leaving the vehicle unable to restart until the battery is recharged or the charging fault is repaired.

Can a bad alternator drain a battery?

Yes, although the more precise description is that a failed alternator can leave the battery insufficiently recharged while the engine runs. Repeated undercharging gradually reduces the battery’s available energy, eventually causing starting problems or complete discharge. A defective alternator can also damage a battery through overcharging. Battery condition should therefore be tested whenever charging-system failure is suspected.

How do I know if my battery or alternator is bad?

Look at the pattern rather than one symptom. A battery that fails after sitting may be more suspicious, while a vehicle that starts after a jump but soon develops electrical problems points more strongly toward charging failure. Because the symptoms overlap, the reliable approach is to test battery condition, charging output, connections, belt condition and voltage drop before replacing either component.

Can a car run with a bad alternator?

A car can sometimes continue running temporarily after alternator failure because the battery still contains stored electrical energy. However, the vehicle will eventually lose that energy if the alternator does not recharge it. The available time varies with battery condition, electrical load and vehicle design, so there is no dependable universal driving distance. Professional assistance is safer than relying on remaining battery charge.

How long can you drive with a bad alternator?

There is no reliable fixed number of minutes or miles. A fully charged battery under light electrical demand may keep a vehicle operating longer than a partially discharged battery under heavy load, while modern vehicles can consume electrical energy rapidly. Because the vehicle may stall without much warning, a failing charging system should be repaired promptly rather than managed by estimating remaining driving time.

What voltage should an alternator produce?

There is no single voltage that applies to every vehicle, particularly modern vehicles with smart charging systems. DENSO’s general procedure describes approximately 13–15 volts at around 2,000 RPM for the system tested, while emphasizing vehicle-specific service specifications. The important point is whether measured output matches the manufacturer’s expected operating strategy under the relevant conditions and electrical load.

Can a bad alternator cause dim headlights?

Yes. Insufficient or unstable charging output can reduce the electrical power available to lighting systems, producing dimming or flickering headlights. The symptom can become more noticeable at idle or when several accessories operate simultaneously. However, lighting faults, wiring resistance, poor grounds and other electrical problems can create similar behavior, so dim headlights should be treated as evidence rather than conclusive proof.

Can a bad alternator cause flickering lights?

Yes. Flickering can occur when charging voltage is unstable or insufficient, particularly when alternator output changes with engine speed or electrical demand. A failing voltage regulator, poor connection, belt problem or other charging-system fault can also cause fluctuations. If flickering appears together with a battery warning light, repeated battery discharge or abnormal voltage, the charging system deserves prompt testing.

Can an alternator fail without the battery light coming on?

Yes. A charging problem may initially be intermittent, load-dependent, mechanically related, or caused by a component that does not immediately trigger a dashboard warning. Some faults may also affect output without producing an obvious warning to the driver. New electrical symptoms, repeated battery discharge or unusual alternator noise should therefore be investigated even when the dashboard remains apparently normal.

Can a bad alternator cause starting problems?

Yes, usually indirectly. The alternator recharges the battery while the engine runs, so inadequate charging can gradually leave the battery too weak to operate the starter effectively. Slow cranking or a no-start condition can also result from a bad battery, starter, cable or ground. Testing the battery and charging system together is more reliable than diagnosing either component from starting symptoms alone.

Can a bad alternator cause electrical problems?

Yes. Low or unstable system voltage can affect power windows, blower motors, infotainment systems, dashboard electronics and other electrical equipment. Modern vehicles contain numerous voltage-sensitive control modules, so charging problems may appear as several unrelated electronic faults. When multiple electrical symptoms develop together, checking charging voltage, battery condition, wiring and grounds can reveal a common underlying problem.

What causes an alternator to fail?

Common failure mechanisms include worn brushes, failed diodes, voltage-regulator faults, bearing wear, excessive heat, belt or pulley problems, electrical overloading and fluid contamination. Alternators operate in a hot, vibrating environment and can experience significant mechanical and electrical stress. Identifying the original cause matters because replacing the alternator without correcting a damaged belt, wiring fault or fluid leak may lead to another failure.

How do you test an alternator with a multimeter?

Begin by inspecting the battery, connections and belt. Measure battery voltage with the engine off, then measure charging voltage with the engine running and compare it with the vehicle manufacturer’s specification. Test again under appropriate electrical load, and consider positive- and negative-side voltage-drop testing. A voltage reading alone does not prove alternator failure because wiring, battery and control-system faults can produce similar results.

Can a bad serpentine belt cause alternator failure symptoms?

Yes. The serpentine belt transfers engine rotation to the alternator, so a worn, loose, damaged or slipping belt can reduce alternator speed and charging output. Belt problems may also create squealing noises and burning-rubber odors. Because DENSO includes belt condition, alignment and tension in charging-system troubleshooting, belt inspection should occur before condemning the alternator itself.

Should I replace the battery when replacing the alternator?

Not automatically. The battery should be tested first. A failing alternator may have repeatedly undercharged the battery or, in an overcharging situation, exposed it to excessive voltage, potentially reducing its capacity. If the battery passes appropriate testing and remains healthy, replacement may not be necessary. If it has been damaged, replacing only the alternator may leave the vehicle with another weak component.

Is it better to repair or replace an alternator?

It depends on the failure and the alternator’s overall condition. Repairing a replaceable regulator, brush assembly, bearing or rectifier can make sense when the remaining components are healthy. Replacement is often more practical when multiple internal components are worn, the unit has severe heat or contamination damage, or labor makes rebuilding uneconomical. Warranty, parts quality and vehicle-specific compatibility should also influence the decision.

Why is my battery light still on after replacing the alternator?

A battery warning that remains illuminated after alternator replacement can result from a defective replacement unit, loose or damaged wiring, a blown fuse or fusible link, poor grounds, a damaged battery, belt problems, or a charging-control fault. The warning indicates a charging-system problem rather than automatically identifying the alternator. A complete charging-system test should therefore follow replacement if the light remains on.

Final Takeaway

Alternator problems are best understood as charging-system problems first and alternator problems second. Dim lights, a battery warning, repeated battery discharge, strange electrical behavior, unusual noises and starting trouble can all provide valuable clues, but the diagnosis becomes reliable only when those clues are matched with battery testing, belt inspection, charging measurements and electrical-circuit checks.

The most useful rule is simple: a symptom can tell you where to look; a proper test tells you what to replace. That distinction can save both money and frustration while preventing a minor charging fault from becoming a roadside breakdown.
