How to Replace a MAF Sensor: Step-by-Step DIY Guide

A faulty Mass Air Flow (MAF) sensor can transform an otherwise healthy engine into one that hesitates, idles roughly, wastes fuel, or illuminates the check engine light seemingly without warning. Because the sensor provides the engine control unit (ECU) with real-time airflow measurements, even small inaccuracies can disrupt the delicate balance between air and fuel that modern engines depend on.

Fortunately, replacing a MAF sensor is one of the more approachable automotive repairs for many DIY enthusiasts. In most vehicles, the job requires only basic hand tools and less than an hour of work. The real challenge isn’t installing the new sensor—it’s confirming that the sensor is actually the source of the problem before spending money on replacement.

Throughout this guide, you’ll learn not only how to replace a MAF sensor correctly but also how to avoid common installation mistakes, verify the repair using diagnostic data, and recognize situations where cleaning or additional troubleshooting is the smarter solution. Following the SAFE Replacement Method—Scan, Assess, Fit, Evaluate—will help ensure the repair addresses the root cause rather than simply replacing parts.

What Does a MAF Sensor Do?

Before replacing any component, it’s worth understanding why it matters. Knowing how the MAF sensor influences engine operation makes diagnosing problems—and confirming a successful repair—far more straightforward.

A Mass Air Flow (MAF) sensor measures the amount and density of air entering the engine through the intake system. Positioned between the air filter housing and the throttle body, it continuously sends airflow data to the Engine Control Unit (ECU), allowing the computer to calculate the precise amount of fuel needed for efficient combustion.

Definition: A MAF sensor is an electronic airflow meter that enables the ECU to determine the correct air-fuel ratio by measuring the mass of incoming air rather than simply its volume.

Most modern vehicles use either a hot-wire or hot-film sensing element. Both designs operate on a similar principle: as incoming air passes over the heated element, it cools the sensor. The ECU measures the electrical current required to maintain the sensor’s temperature and converts that information into an airflow reading.

Think of the MAF sensor as the engine’s breathing monitor. If it overestimates airflow, the ECU injects more fuel than necessary, creating a rich mixture. If it underestimates airflow, fuel delivery becomes insufficient, producing a lean condition that can reduce power, increase emissions, and affect long-term engine health.

This continuous communication influences nearly every aspect of engine operation, including:

Because the MAF sensor works alongside components such as the oxygen sensors, intake air temperature (IAT) sensor, throttle body, and fuel injectors, symptoms caused by one faulty component can closely resemble another. That’s why accurate diagnosis should always come before replacement.

How to Tell If Your MAF Sensor Needs Replacement

Many drivability complaints are blamed on the MAF sensor when the real culprit lies elsewhere. Beginning with accurate diagnosis not only saves money but also prevents replacing perfectly functional components.

A failing MAF sensor usually affects the engine’s ability to calculate the correct air-fuel mixture. Rather than producing one dramatic failure, it often creates several subtle problems that become more noticeable over time.

Common symptoms include:

These symptoms occur because the ECU depends on accurate airflow measurements to determine how much fuel each cylinder requires. Even a slight deviation in airflow data can upset combustion efficiency.

For example, if the sensor reports less air than the engine is actually receiving, the ECU reduces fuel injection, creating a lean mixture. Drivers may notice sluggish acceleration, hesitation, or occasional misfires. Conversely, if airflow is overreported, excessive fuel delivery can lead to poor fuel economy, carbon buildup, and rough idle.

Diagnostic Trouble Codes That Often Point to a MAF Problem

A scan tool provides valuable evidence before replacing the sensor. Common diagnostic trouble codes include:

However, these codes should never be interpreted as automatic confirmation that the sensor itself has failed.

Vacuum leaks, damaged intake ducts, clogged air filters, corroded electrical connectors, broken wiring, or even a dirty throttle body can trigger identical codes. Replacing the sensor without investigating these possibilities often results in the check engine light returning shortly afterward.

Expert Tip: A diagnostic trouble code identifies the affected system—not necessarily the failed component. Always confirm the cause before replacing parts.

When Replacement Makes More Sense Than Further Testing

Although additional testing is generally recommended, replacement becomes the logical next step when multiple conditions align:

In these situations, installing a quality replacement sensor is often more cost-effective than investing additional time in repeated troubleshooting.

Replace or Clean? Know Which One Your Vehicle Actually Needs

One of the biggest mistakes DIY mechanics make is assuming every MAF-related issue requires a new sensor. In reality, many airflow problems result from contamination rather than electronic failure.

Over time, microscopic particles of dust, oil vapor, pollen, and airborne debris can accumulate on the sensing element. This contamination acts like a thin insulating layer, preventing the hot wire or hot film from accurately measuring incoming air.

When the sensing element remains electrically healthy, careful cleaning with a dedicated Mass Air Flow Sensor Cleaner often restores normal operation.

Replacement, however, becomes necessary when the sensor itself has deteriorated or sustained physical damage.

Situations Where Cleaning Is Usually Enough

Cleaning is generally appropriate when:

Using a cleaner designed specifically for MAF sensors is critical. Brake cleaner, carburetor cleaner, or compressed air can permanently damage the delicate sensing element by leaving residue or physically deforming the wire.

Situations Where Replacement Is the Better Choice

Installing a new sensor is often the more reliable repair when:

Another consideration is sensor quality. Extremely inexpensive aftermarket units sometimes produce airflow readings that differ slightly from factory calibration. While the engine may run, fuel trims and drivability can remain inconsistent. Choosing an OEM-quality replacement or a reputable supplier generally provides more predictable long-term performance.

The SAFE Replacement Method

Before purchasing a replacement sensor, apply the SAFE framework introduced earlier:

This simple sequence reduces unnecessary parts replacement and mirrors the diagnostic process followed by experienced technicians. Rather than treating the MAF sensor as an isolated component, it recognizes that accurate airflow measurement depends on the health of the entire intake system.

In the next section, we’ll cover the tools, replacement parts, and safety equipment you’ll need before beginning the installation, along with practical preparation tips that can make the job smoother and help prevent accidental damage to the new sensor.

Tools, Parts, and Safety Equipment

Preparation often determines whether a repair feels straightforward or frustrating. Spending a few minutes gathering the right tools and confirming you have the correct replacement part minimizes interruptions and reduces the risk of damaging the new sensor during installation.

The good news is that replacing a Mass Air Flow sensor rarely requires specialized equipment. Most vehicles use only a handful of fasteners, and the sensor is designed to be accessible from the engine bay. However, having a diagnostic scanner available before and after installation significantly improves the quality of the repair because it allows you to confirm the fault, clear diagnostic trouble codes, and verify that the ECU is receiving accurate airflow data.

Essential Tools

Most MAF sensor replacements require:

Many manufacturers use tamper-resistant Torx screws to secure the sensor housing. Checking your vehicle’s service information beforehand prevents unnecessary delays once the repair begins.

Recommended Diagnostic Equipment

Although not strictly required, these tools make the repair more accurate:

An OBD-II scanner is especially valuable because it lets you compare airflow readings before and after replacement. Rather than assuming the repair was successful because the engine feels smoother, you can confirm that the sensor is reporting realistic values and that fuel trims are returning toward normal.

Choosing the Correct Replacement Sensor

Not every replacement sensor performs equally well. While many aftermarket options physically fit the vehicle, calibration accuracy can vary considerably.

Before purchasing a new sensor, verify:

Some vehicles require replacing only the sensing element, while others use a complete housing assembly. Installing the wrong version may result in inaccurate airflow readings even if the connector fits perfectly.

For long-term reliability, OEM sensors or premium suppliers such as Bosch, Denso, Hitachi, or Delphi generally provide airflow calibration that closely matches factory specifications.

Safety Before You Begin

Modern engine management systems are remarkably resilient, but electrical components remain sensitive.

Before starting the replacement:

A MAF sensor measures airflow using an extremely delicate sensing element. Even skin oils or tiny particles of dust can affect measurement accuracy. Treat it with the same care you would give a camera lens or laboratory instrument.

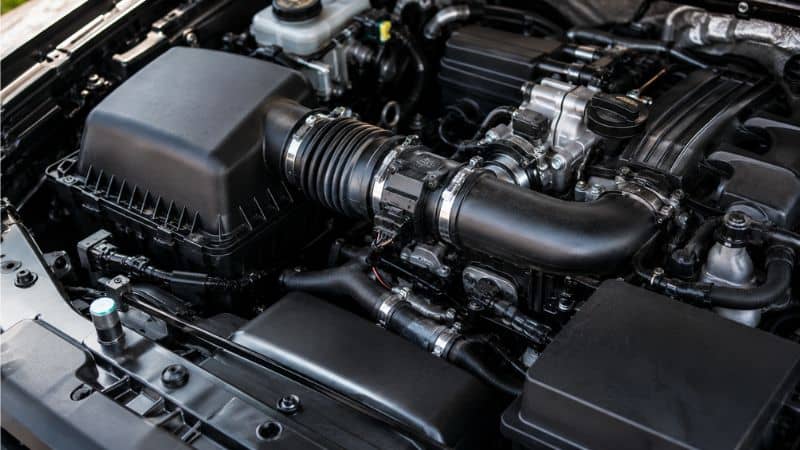

Where Is the MAF Sensor Located?

Finding the sensor is usually the easiest part of the job. Even though engine layouts differ between manufacturers, the MAF sensor almost always occupies the same position within the intake system because it must measure all incoming air before it reaches the engine.

In most gasoline-powered vehicles, the sensor sits between the air filter housing and the throttle body inside the intake tube. Air passes through the air filter first, then flows across the MAF sensor before entering the intake manifold.

If you follow the large plastic intake duct from the air filter box toward the engine, you’ll typically find a small electrical connector attached to a plastic or aluminum housing. That housing contains the Mass Air Flow sensor.

Common Location by Engine Type

Although the basic principle remains unchanged, the exact location varies slightly depending on engine design.

Naturally Aspirated Engines

The sensor is usually mounted immediately after the air filter box, making it easy to access without removing additional components.

Turbocharged Engines

Turbocharged vehicles often position the MAF sensor ahead of the turbocharger compressor. Additional intake plumbing may partially obstruct access, but the sensor still measures incoming air before boost is created.

Integrated Air Intake Assemblies

Some manufacturers incorporate the MAF sensor into a larger intake assembly. In these cases, only the sensing element is removable, while the housing remains attached to the intake tube.

Identifying the Correct Component

Newer engines contain several sensors positioned close together, making identification important before disconnecting anything.

A MAF sensor usually has:

Do not confuse it with the MAP (Manifold Absolute Pressure) sensor, which mounts on the intake manifold rather than inside the intake tube. While both sensors help the ECU calculate engine load, they measure entirely different parameters.

Once you’ve confirmed the sensor’s location and verified the replacement part matches the original, you’re ready to begin the installation process.

How to Replace a MAF Sensor (Step-by-Step)

Replacing a Mass Air Flow sensor is less about mechanical difficulty than careful handling. Every step contributes to ensuring the new sensor provides accurate airflow data immediately after installation.

The following procedure follows the SAFE Replacement Method™, beginning with diagnosis and ending with verification rather than stopping once the new part is installed.

Step 1 — Confirm the Fault

Never begin by assuming the MAF sensor is defective.

Connect an OBD-II scanner and retrieve all stored and pending diagnostic trouble codes. Codes such as P0100, P0101, P0102, or P0103 indicate airflow-related issues, but they do not automatically confirm sensor failure.

Review live data while the engine idles. Most healthy engines show stable airflow readings that increase smoothly as engine speed rises. Erratic values, implausible airflow, or readings that remain fixed regardless of throttle input deserve further investigation.

Also inspect:

Replacing the sensor before completing these checks often leads to recurring problems.

Step 2 — Turn Off the Engine and Disconnect the Battery

Once diagnosis confirms replacement is appropriate, switch the ignition off and remove the key.

Although some manufacturers do not strictly require battery disconnection, disconnecting the negative battery terminal reduces the possibility of accidental short circuits while unplugging electrical connectors.

Wait a few minutes after disconnecting the battery to allow control modules to power down completely.

Step 3 — Locate the Sensor

Open the hood and trace the intake system from the air filter housing toward the throttle body.

Locate the sensor housing and examine its installation before removing anything.

Pay attention to:

• Airflow direction arrow
• Connector orientation
• Mounting screw locations
• Wire routing

Taking a quick reference photo with your phone can simplify reassembly.

Step 4 — Disconnect the Electrical Connector

Electrical connectors are often the most stubborn part of the entire repair.

Depress the locking tab gently before pulling the connector straight backward. Never pull on the wiring harness itself, as this can loosen internal terminals or damage the connector housing.

If dirt has accumulated around the connector, clean the area first to prevent debris from entering the electrical contacts.

Expert Tip: If the connector refuses to release, inspect it carefully rather than forcing it. Many manufacturers use secondary locking tabs that must be disengaged before removal.

Step 5 — Remove the Mounting Screws

Using the appropriate Torx bit or screwdriver, loosen the mounting screws evenly.

Place the screws in a small magnetic tray or container to prevent them from disappearing into the engine bay.

Avoid using excessive force, particularly on older plastic intake housings that may have become brittle from years of engine heat.

Step 6 — Remove the Old Sensor Carefully

Lift the sensor straight out while keeping it level.

Avoid touching the sensing wire or hot-film element. Even if you’re replacing the sensor, examining the old unit may provide useful diagnostic clues.

Heavy oil deposits could indicate contamination from an over-oiled reusable air filter, while excessive dirt may point to an improperly sealed air filter housing.

These observations help prevent the new sensor from suffering the same fate.

Step 7 — Compare the Old and New Sensors

Before installation, compare both components side by side.

Verify:

This simple comparison takes less than a minute but can prevent reinstalling the wrong component.

Never assume two visually similar sensors share identical airflow calibration.

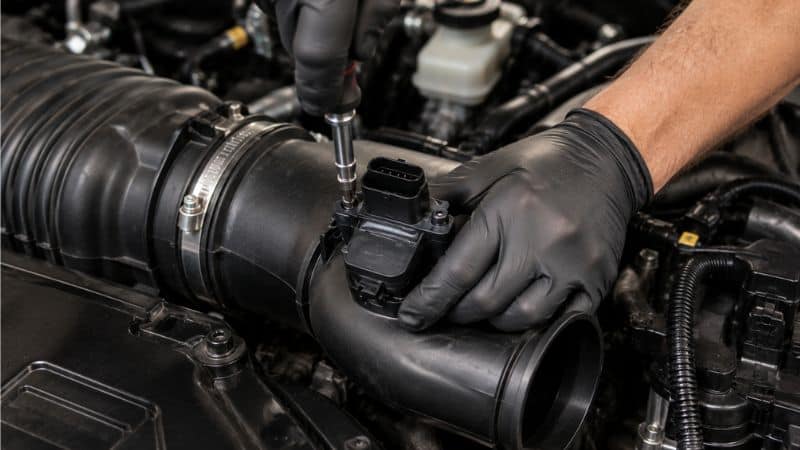

Step 8 — Install the New Sensor

Lower the new sensor gently into position without allowing the sensing element to contact the housing.

Align the airflow direction arrow with the direction of incoming air. Installing the sensor backward will produce incorrect airflow measurements and can immediately trigger new fault codes.

Install the mounting screws by hand before tightening them evenly.

They should be snug rather than excessively tight. Overtightening may crack plastic housings or distort sealing surfaces.

Throughout the installation, avoid touching the sensing element with gloves, tools, or cleaning cloths.

Step 9 — Reconnect Everything

Reconnect the electrical connector until the locking tab clicks securely into place.

Reconnect the negative battery terminal if it was removed earlier.

Before starting the engine, perform one final inspection.

Confirm that:

Small oversights here can create symptoms that mimic a faulty sensor.

Step 10 — Clear Codes and Test Drive

The installation isn’t complete until you’ve verified that the engine management system is receiving accurate airflow information.

Use the OBD-II scanner to clear stored diagnostic trouble codes.

Start the engine and allow it to idle for several minutes. Depending on the vehicle, idle speed may fluctuate briefly while the ECU adapts to the new airflow readings.

Monitor live data for:

Finally, perform a short road test covering light acceleration, moderate cruising, and steady idle after the drive.

A successful replacement should result in smoother acceleration, improved idle quality, normal fuel trim behavior, and no recurring airflow-related diagnostic codes.

At this stage, the physical replacement is complete. The final phase of this guide explains what to expect during ECU relearning, how to verify long-term success, and what to do if installing a new MAF sensor doesn’t completely solve the original problem.

What Happens After Installing a New MAF Sensor?

Installing the new sensor is only part of the repair. The final objective is restoring accurate communication between the MAF sensor and the Engine Control Unit (ECU), allowing the engine to calculate fuel delivery with confidence under every driving condition.

Immediately after replacement, some vehicles settle into normal operation within seconds, while others require a short adaptation period. This behavior depends on the manufacturer’s engine management strategy rather than the quality of the replacement sensor.

Understanding ECU Relearning

Modern ECUs continuously learn from sensor feedback. When a faulty MAF sensor has been supplying inaccurate airflow data for an extended period, the ECU may have developed adaptive fuel trim values to compensate.

After installing a properly functioning sensor, those learned corrections gradually return toward normal.

During this period, you may notice:

These temporary changes are usually normal provided no new diagnostic trouble codes appear.

Some vehicles automatically relearn airflow values through normal driving, while others benefit from clearing adaptive memory with a capable scan tool. Always follow the manufacturer’s recommended procedure whenever available.

Key Takeaway: A new MAF sensor restores accurate airflow measurement, but the ECU may require several drive cycles before engine performance fully stabilizes.

Common Mistakes That Cause New MAF Sensors to Fail

Many replacement failures are not caused by defective parts but by installation errors or unresolved issues elsewhere in the intake system. Understanding these pitfalls helps protect both your investment and your engine’s performance.

Installation Errors

The most common mistake is touching the sensing element.

The hot wire or hot-film sensor is extremely delicate. Fingerprints, dirt, or accidental contact with tools can alter its ability to measure airflow accurately.

Other frequent installation mistakes include:

Even a perfectly functioning sensor cannot provide accurate data if unmetered air enters the intake system after installation.

Poor Replacement Part Quality

Not every aftermarket sensor meets OEM calibration standards.

Some inexpensive sensors physically fit the vehicle but produce airflow values that differ slightly from factory specifications. While the engine may start and run, fuel trims can remain excessively positive or negative, leading to recurring check engine lights and inconsistent drivability.

Whenever possible, choose an OEM replacement or a premium manufacturer with proven calibration accuracy.

Problems Beyond the Sensor

Replacing the sensor without addressing underlying causes often results in repeated failures.

Examples include:

If these conditions remain, the new sensor may quickly become contaminated or continue producing misleading airflow readings.

Troubleshooting Checklist

If problems persist after installation, verify the following before assuming the new sensor is defective:

This systematic review often resolves issues that appear to be sensor-related but originate elsewhere.

How to Verify the Replacement Was Successful

Replacing the part without confirming the outcome leaves the repair unfinished. A few simple checks can verify that the engine is once again receiving reliable airflow information.

Begin with an OBD-II scan tool. Confirm that no airflow-related diagnostic trouble codes have returned and that no pending codes are waiting to mature into active faults.

Next, observe live data.

Airflow readings should increase smoothly as engine speed rises rather than jumping erratically or remaining fixed. Fuel trim values should gradually move closer to normal, indicating the ECU is no longer compensating for incorrect airflow calculations.

A successful replacement typically produces:

Finally, complete a road test under varying conditions, including idle, city driving, moderate acceleration, and steady highway cruising.

Expert Tip: The best confirmation of a successful MAF replacement isn’t simply that the check engine light stays off—it’s that live airflow data, fuel trims, and drivability all improve together.

When a New MAF Sensor Doesn’t Fix the Problem

Replacing the MAF sensor doesn’t guarantee that every drivability issue will disappear. Because the sensor works within a network of interconnected engine management components, similar symptoms can originate elsewhere.

Rather than replacing additional parts at random, approach the problem methodically.

Intake System Issues

Air entering the engine after passing the MAF sensor remains invisible to the ECU.

Vacuum leaks, cracked intake ducts, damaged PCV hoses, or loose clamps introduce unmetered air that causes lean fuel mixtures and airflow-related diagnostic codes.

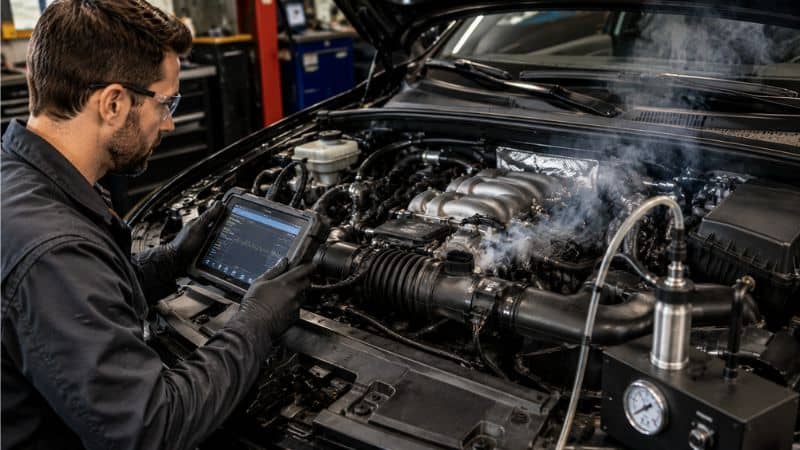

A smoke test remains one of the most effective methods for identifying these hidden leaks.

Related Engine Sensors

Other sensors also influence fuel delivery.

A faulty MAP sensor, malfunctioning oxygen sensor, or inaccurate Intake Air Temperature (IAT) sensor may create symptoms nearly identical to those of a failing MAF sensor.

Live scan data helps distinguish which component is reporting unrealistic values.

Airflow Restrictions

Not every airflow problem involves incorrect measurement.

Restricted airflow caused by a clogged air filter, carbon buildup inside the throttle body, or debris within the intake system can reduce engine performance despite a perfectly functioning sensor.

Inspecting these components should always accompany MAF diagnosis.

Electrical and Fuel System Problems

If airflow readings appear normal, expand the diagnosis.

Consider:

These issues require additional testing rather than further parts replacement.

Diagnostic Flow

When replacement fails to solve the problem, follow this logical sequence:

1. Verify live MAF data.
2. Inspect for intake and vacuum leaks.
3. Check wiring and electrical connections.
4. Evaluate fuel trim values.
5. Test related sensors.
6. Confirm adequate fuel pressure.
7. Investigate ECU faults only after eliminating all other possibilities.

Following this structured approach prevents unnecessary expense and reduces diagnostic guesswork.

DIY vs Professional Replacement

For many vehicle owners, replacing a MAF sensor falls comfortably within the range of beginner-friendly maintenance. However, the decision depends less on mechanical ability than on diagnostic confidence.

If diagnostic trouble codes clearly identify airflow issues, the sensor is easily accessible, and basic tools are available, most DIY enthusiasts can complete the replacement in approximately 30 to 60 minutes.

Professional repair becomes worthwhile when:

Although labor charges increase the overall repair cost, experienced technicians also verify live data, inspect related systems, and confirm the repair before returning the vehicle.

For straightforward replacements, DIY repair offers meaningful savings. For complex diagnostic situations, professional expertise often prevents unnecessary parts replacement and repeated repairs.

FAQs on Replacing a MAF Sensor

Can I replace a MAF sensor myself?

Yes. On most vehicles, replacing a MAF sensor requires only basic hand tools and less than an hour of work. The most important step is confirming that the sensor has actually failed before replacing it. Careful handling of the sensing element and correct installation are essential for reliable operation.

Do I need to disconnect the battery before replacing a MAF sensor?

Many vehicles allow replacement without disconnecting the battery, but removing the negative battery terminal is generally recommended. It reduces the risk of electrical shorts, protects sensitive electronics while disconnecting the sensor, and may help reset adaptive values on some engine management systems.

Will replacing the MAF sensor clear the check engine light?

Not always. Installing a new sensor fixes the underlying fault only if the sensor was truly defective. Stored diagnostic trouble codes usually remain until cleared with an OBD-II scanner, although some vehicles automatically turn off the warning light after several successful drive cycles.

Do I need to program a new MAF sensor?

Most replacement MAF sensors do not require programming or coding. Once installed, the ECU begins using the new airflow data immediately. Some vehicles benefit from clearing adaptive memory or completing a relearn procedure, but dedicated programming is rarely necessary.

How long does replacement take?

For most passenger vehicles, replacing a Mass Air Flow sensor takes between 30 and 60 minutes. Additional time may be needed if intake components must be removed for access or if further diagnostic testing is required before confirming the sensor has failed.

Can a bad MAF sensor damage the engine?

A faulty MAF sensor usually causes poor fuel economy, rough idle, hesitation, and increased emissions before it causes serious engine damage. However, prolonged operation with excessively rich or lean fuel mixtures may contribute to carbon buildup, catalytic converter stress, and reduced overall engine efficiency.

Should I buy OEM or aftermarket?

OEM sensors generally provide the most accurate airflow calibration and long-term reliability. High-quality aftermarket sensors from reputable manufacturers can also perform well, but very inexpensive replacements sometimes produce inaccurate readings that lead to recurring drivability problems or diagnostic trouble codes.

Can I drive immediately after replacement?

Yes. Most vehicles can be driven immediately after replacing the sensor, provided all intake connections are secure and diagnostic codes have been cleared if necessary. The ECU may require several drive cycles to complete fuel trim adaptation, but normal driving usually supports this relearning process.

Wrap Up

Replacing a Mass Air Flow sensor is one of the most rewarding DIY engine repairs because it combines relatively simple mechanical work with measurable improvements in drivability, fuel economy, and engine responsiveness. Success, however, depends on more than installing a new part.

The most reliable repairs begin with accurate diagnosis, continue with careful installation, and end with verification using live scan data rather than assumptions. Following the **SAFE Replacement Method™—Scan, Assess, Fit, Evaluate—**helps ensure you’re solving the real problem instead of replacing parts unnecessarily.

If your vehicle still exhibits airflow-related symptoms after replacement, resist the temptation to guess. Methodically inspect the intake system, electrical connections, fuel trims, and related sensors. Modern engine management systems are highly interconnected, and effective diagnosis always follows evidence rather than intuition.

By combining proper testing, quality replacement components, and post-installation verification, you’ll not only restore accurate airflow measurement but also build a stronger understanding of how your engine’s intake system works as a whole.
