A car battery can look perfectly healthy and still leave you with a silent starter. That is why testing should go beyond asking whether the battery shows “12 volts.”
To test a car battery properly, check its resting voltage, observe its voltage during cranking, and measure charging voltage with the engine running. If the results remain uncertain, a load or conductance test can provide a deeper assessment of battery health. A digital multimeter is enough for the first stage, but voltage alone cannot establish complete battery condition.
How to Test a Car Battery: Quick Answer
Testing a car battery at home starts with a digital multimeter set to DC volts. With the engine and accessories off, place the red probe on the positive (+) battery terminal and the black probe on the negative (−) terminal, then read the display.
A fully charged conventional 12V lead-acid battery will typically show about 12.6–12.8 volts after resting. A lower reading may indicate partial discharge, but it does not automatically prove the battery is defective. For a more meaningful diagnosis, test the battery while cranking and then check the vehicle’s charging voltage with the engine running.
The key distinction is simple: resting voltage mainly indicates state of charge, while cranking, load, and conductance tests provide more information about starting ability and battery health.
What You Need to Test a Car Battery
A basic battery check does not require an elaborate workshop setup. A reliable digital multimeter, a safe working area, and access to the battery terminals are enough to begin.
Digital multimeter
Choose a multimeter capable of measuring DC voltage in the automotive 12V range. Many basic meters have a 20V DC setting, which is suitable for checking a typical 12V car battery. The red lead goes into the voltage jack and the black lead into COM.
When you need a battery load tester
A multimeter tells you what voltage is present; a battery load tester examines how the battery responds when substantial electrical demand is applied. This matters because a weak battery may display an acceptable resting voltage but struggle when the starter motor asks for high current.
When a professional battery analyzer is better
For deeper diagnosis, a professional battery analyzer or conductance tester can assess factors such as estimated Cold Cranking Amps (CCA), voltage stability, and internal resistance. These measurements are more useful for evaluating state of health (SOH) than resting voltage alone.
Before Testing: Prepare the Car and Battery
Good testing begins before the multimeter touches the terminals. A rushed measurement can be technically correct yet diagnostically misleading.
Turn off electrical accessories
Switch off the headlights, climate control, audio system, interior lights, and other electrical accessories. Make sure the ignition is off before taking a resting-voltage reading. Fluke also recommends inspecting the terminals for looseness or corrosion before testing.
Allow the battery to rest
If the car has just been driven, the battery may carry surface charge, temporarily raising the measured voltage. For a more representative resting-voltage measurement, allow the vehicle to sit for at least an hour; leaving it overnight provides an even cleaner baseline.
Remove or account for surface charge
If you cannot wait, one accepted approach is to switch the headlights on briefly and then turn them off before measuring. Fluke recommends approximately one minute for bleeding off surface charge in its multimeter guidance.
Inspect the battery before testing
Look at the battery case, terminals, hold-down, and cables. Swelling, cracks, leakage, severe corrosion, loose connections, or heat-damaged cables can change the diagnosis. A battery terminal is a small contact point with a large responsibility: even a healthy battery cannot deliver current properly through a poor connection.
How to Test Car Battery Voltage With a Multimeter
This is the simplest and most accessible battery test. Done correctly, it tells you the battery’s approximate state of charge (SOC) before you move into more advanced diagnosis.
Step 1: Set the multimeter to DC volts
Set the meter to VDC or the DC-voltage range appropriate for a 12V battery. On many manual-ranging meters, the 20V setting is suitable. Confirm that the black lead is in COM and the red lead is in the voltage-measurement jack.

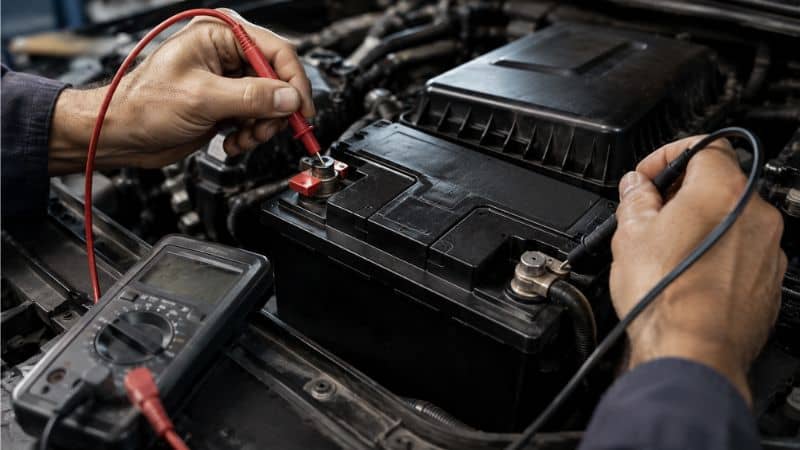

Step 2: Connect the red probe to positive
Touch the red probe firmly to the battery’s positive (+) terminal. Avoid allowing the metal probe tip to contact another metal part of the vehicle at the same time.
Step 3: Connect the black probe to negative
Touch the black probe to the negative (−) terminal. If the display shows a negative value, the probes are reversed; simply switch their positions.
Step 4: Read and record the voltage
With the vehicle off and the battery rested, note the exact reading. Recording the result is useful if you later charge the battery and test it again.
Step 5: Interpret the result
For a conventional 12V lead-acid battery, these readings provide a useful starting framework:
| Resting voltage | General interpretation |
| About 12.6–12.8V | Fully charged or very well charged |
| About 12.4V | Partially charged |
| About 12.2V | Roughly half charged |
| Below 12.0V | Significantly discharged |
| Around 11.9V or lower | Very deeply discharged / potentially problematic |
These are guidelines, not universal pass/fail thresholds. Temperature, battery construction, recent charging, surface charge, and manufacturer specifications can affect the result. Fluke specifically cautions that voltage testing primarily indicates state of charge rather than complete battery condition.
Car Battery Voltage Chart: What Your Reading Means
A voltage chart is useful because it translates an abstract number on a multimeter into a practical starting point. But the most important distinction is between state of charge and state of health.
| Approximate resting voltage | Approximate charge condition |
| 12.6–12.8V | Fully charged |
| Around 12.4V | Approximately 75% charged |
| Around 12.2V | Approximately 50% charged |
| Around 12.1V | Approximately 25% charged |
| Around 12.0V or below | Very low charge |
The exact values vary with battery type and testing conditions. Fluke’s reference table, for example, associates approximately 12.60–12.72V with full charge under specified conditions.
Here is the information many basic battery guides fail to emphasize: a battery can have a healthy-looking voltage and still have poor starting performance. Resting voltage primarily answers, “How charged is it?” It does not fully answer, “How much starting power can it deliver?”
That is the difference between SOC and SOH. Think of voltage as looking at how much fuel appears to be in the tank; battery-health testing asks whether the engine can actually use that reserve when demand rises.

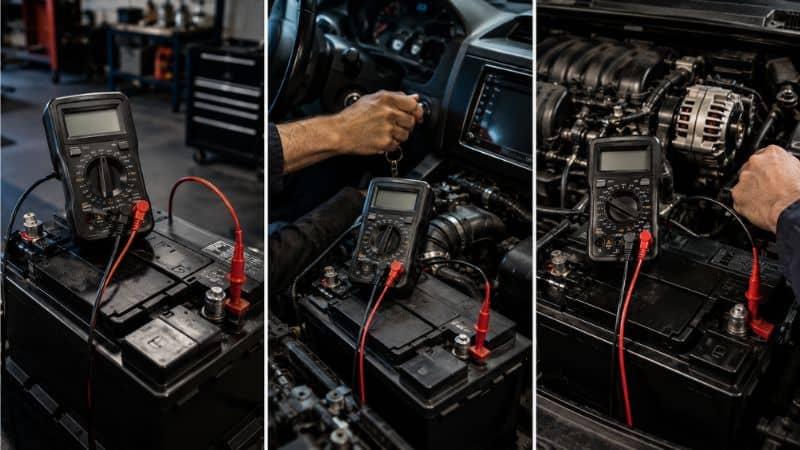

How to Test a Car Battery While Starting the Engine
A resting-voltage test is only one part of the picture. Watching the meter while the starter motor operates reveals how well the battery handles a sudden, heavy electrical demand.
Connect the multimeter to the battery terminals and use a meter with MIN/MAX capture if available. Observe the lowest voltage reached during engine cranking. Fluke specifically recommends MIN/MAX functionality for capturing voltage drops during starting.
A healthy battery should maintain sufficient voltage while cranking rather than collapsing dramatically. If the voltage falls excessively, investigate the battery’s condition, its CCA capability, terminal connections, cables, and the starter circuit rather than relying on the resting-voltage number alone.
The important principle is:
A battery that reads normally at rest but drops excessively during cranking may have insufficient starting capability or a connection problem.
Always compare the measured value with the vehicle or battery manufacturer’s specifications where available. Temperature also matters, because cold conditions increase the demand placed on starting batteries.
How to Test the Alternator and Charging System
Once the engine starts, the diagnostic question changes. You are no longer measuring only the battery; you are examining the charging system, including the alternator and voltage-regulation system. Understanding the charging side becomes easier when you know the alternator and its components responsible for generating and regulating electrical output.
With the engine running, measure voltage across the battery terminals again. Depending on the vehicle and charging strategy, a conventional charging system may commonly show roughly 13.7–14.7V, although exact specifications vary. Haynes gives approximately 13.8–14.4V as a typical range at normal idle, while Interstate cites 13.7–14.7V.
If the battery repeatedly loses charge and the vehicle eventually stalls, learn more about why a car shuts off while driving and the electrical faults that can cause it.
A low running-voltage reading can indicate an alternator, regulator, wiring, connection, or battery problem. An unusually high reading can also warrant investigation because overcharging can shorten battery life.
However, running voltage is not a substitute for a battery-health test. The engine-running measurement primarily tells you how the charging system is behaving. It should be interpreted alongside resting voltage and cranking performance.
How to Perform a Proper Battery Load Test
A load test answers a different question from a resting-voltage measurement: Can the battery maintain adequate voltage while supplying substantial current?
A proper load test uses a dedicated battery load tester and follows the battery manufacturer’s specifications, including its rated Cold Cranking Amps (CCA). The tester applies a controlled electrical demand and evaluates how the battery responds. Odyssey’s battery-testing guidance uses rated CCA as part of the load-test procedure.
Do not improvise a high-current load with household equipment. Battery testing involves substantial current and, with lead-acid batteries, potentially explosive gas and corrosive electrolyte. Follow the tester’s instructions and the battery manufacturer’s specifications.
Load testing is particularly useful when a battery’s resting voltage appears reasonable but the vehicle still cranks slowly or experiences intermittent starting problems.
How to Test Battery Health With a Battery Analyzer
For modern automotive diagnosis, battery health is more nuanced than a single voltage figure. A professional analyzer can provide a broader picture of the battery’s ability to perform its intended job.
What is a conductance test?
A conductance tester evaluates the battery’s electrical characteristics and can estimate available starting capability. Midtronics describes conductance-based testing as a way to estimate CCA and assess battery performance beyond simple voltage measurement.
What does SOH mean?
State of Health (SOH) describes the battery’s remaining functional capability compared with its expected or rated condition. A battery may be fully charged yet have reduced health because of aging, sulfation, deterioration, or loss of starting capability.
What does SOC mean?
State of Charge (SOC) describes how much charge the battery currently holds. Resting voltage is useful for estimating SOC, but it should not be mistaken for a complete health assessment.
What does a CCA result mean?
Cold Cranking Amps (CCA) represents a battery’s rated ability to deliver starting current under specified cold-temperature testing conditions. A professional tester can compare estimated available cranking capability with the battery’s rated specification.
What is reserve capacity?
Reserve capacity concerns how long a battery can support electrical demand under defined testing conditions. It becomes especially relevant in vehicles with substantial electrical loads and modern electronic systems.

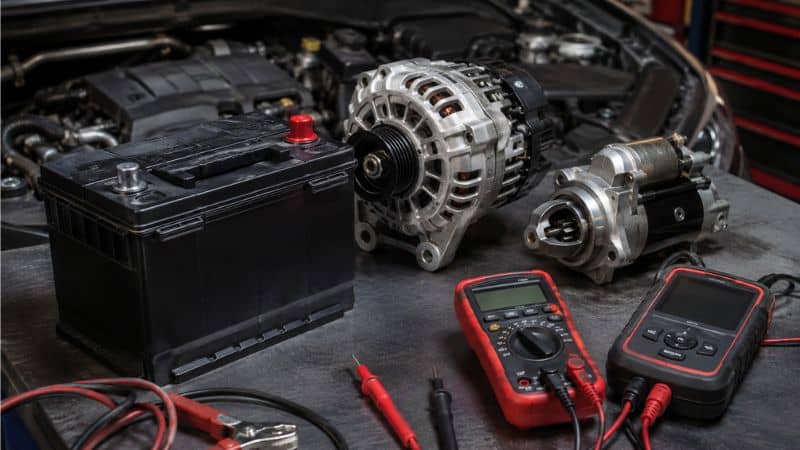

How to Tell Whether the Battery, Alternator, or Starter Is the Problem
When a vehicle will not start, replacing the battery immediately is tempting—but it can be an expensive guess. A better diagnosis combines several measurements. If the battery tests adequately but the engine still refuses to crank, the next logical step is to how to test a starter and inspect its electrical supply.
| Test result | Diagnostic direction |
| Low resting voltage | Discharged battery, charging issue, or battery deterioration |
| Normal resting voltage but poor cranking | Weak battery, poor connection, cables, or starter circuit |
| Low running voltage | Charging-system problem or related electrical fault |
| Battery repeatedly goes flat | Charging problem, parasitic draw, or failing battery |
| Battery passes but engine cranks poorly | Starter, cables, grounds, or connections |
| Battery and charging system test normally | Investigate starter, ignition, fuel, or another no-start cause |
This is why battery diagnosis should be treated as a sequence rather than a single measurement. Resting voltage establishes a baseline; cranking behavior reveals starting performance; running voltage examines charging; deeper battery testing determines whether the battery itself can still deliver its rated service.
Why a Car Battery Can Test “Good” and Still Fail
One of the most frustrating battery problems is a reading that looks healthy while the car behaves otherwise. The explanation is usually that different tests measure different characteristics.
Surface charge can temporarily elevate voltage after driving or charging. A deteriorated battery can also maintain acceptable open-circuit voltage while losing usable starting capability. Corroded terminals, loose cables, weak grounds, or a parasitic electrical drain can further complicate the picture.
A battery that repeatedly loses charge deserves broader investigation. If it holds a charge after being disconnected but becomes depleted while connected to the vehicle, excessive parasitic draw becomes a logical area to investigate.
A 12.6V reading means the battery may be well charged; it does not guarantee that the battery is healthy. That single distinction prevents many unnecessary battery replacements.
How to Test AGM, EFB, and Conventional Car Batteries
Not every 12V automotive battery should be treated identically. Modern vehicles may use AGM (Absorbent Glass Mat) or EFB (Enhanced Flooded Battery) technology, particularly in vehicles equipped with start-stop systems. Most modern vehicles use 12V systems, but owners of classic vehicles should understand how 6-volt car batteries differ before applying standard testing assumptions.
The correct battery type and rated CCA should be entered when using an electronic battery analyzer. Incorrect battery-type or rating information can lead to misleading test results.
A multimeter remains useful for checking voltage, but it cannot identify every aspect of AGM or EFB battery health. If a vehicle has sophisticated battery-management electronics, start-stop functionality, or a battery located away from the engine bay, consult the owner’s manual or service information before testing or replacing it.
Common Car Battery Testing Mistakes
Even a good multimeter can produce an unhelpful diagnosis when the testing method is poor. The most common mistake is treating one voltage reading as the final verdict.
Testing immediately after driving can capture surface charge rather than representative resting voltage. Testing only at rest can miss a battery that collapses under starting demand. Likewise, a normal running voltage does not prove the battery itself is healthy.
Another frequent mistake is ignoring the physical electrical path. Corrosion, loose terminals, damaged cables, and poor grounds can create symptoms that resemble a failing battery. Modern battery analyzers also require correct battery chemistry and CCA information to produce meaningful results.
Finally, do not replace a battery simply because it is discharged. Discharged and defective are not interchangeable diagnoses. Charge it appropriately, allow it to rest, retest it, and investigate why it became discharged if the problem repeats.
When Should You Replace the Car Battery?
Battery replacement makes sense when testing consistently shows that the battery can no longer meet the vehicle’s starting requirements or cannot retain an adequate charge.
A poor SOH result, inadequate cranking capability, repeated failure after proper charging, severe physical deterioration, or recurring no-start symptoms can all support replacement. Battery age can add context, but age by itself should not be treated as a definitive failure test.
If the battery repeatedly becomes discharged, diagnose the alternator and charging system and consider parasitic draw before installing another battery. Otherwise, the new battery may simply inherit the same problem.
The best replacement decision combines test results, symptoms, physical condition, battery age, and vehicle requirements rather than relying on one number.
Car Battery Testing Decision Tree
A disciplined sequence makes battery diagnosis faster and more reliable:
Inspect → Rest → Measure → Crank → Charge → Analyze → Decide
Start with physical condition and connections. Then measure resting voltage after the battery has had time to settle. If it is low, charge the battery and retest rather than immediately declaring it defective.
Next, observe cranking voltage and then check charging voltage with the engine running. If the results remain unclear—or the battery is suspected of having poor starting capability—move to a load or conductance test.
This five-layer approach can be summarized as:
Condition → Charge → Cranking → Charging → Health
It separates five questions that are often incorrectly collapsed into one: Is the battery physically sound? Is it charged? Can it crank the engine? Is the vehicle recharging it? Does the battery still have sufficient health to perform reliably?
Frequently Asked Questions About Testing a Car Battery
How do I test a car battery with a multimeter?
Set the multimeter to DC volts, connect the red probe to the positive battery terminal and the black probe to the negative terminal, then read the voltage with the engine off. A fully charged conventional 12V battery commonly measures around 12.6–12.8V after resting. For better diagnosis, also observe cranking and running voltage.
What voltage should a car battery have when the engine is off?
A fully charged conventional 12V lead-acid battery will commonly show about 12.6–12.8V after resting without a load. Around 12.4V indicates partial charge, while around 12.2V represents roughly half charge under typical reference conditions. A low reading indicates insufficient charge or a potential problem, but voltage alone does not establish battery health.
Is 12.6 volts a good car battery reading?
Yes, approximately 12.6V is generally consistent with a fully charged conventional 12V lead-acid battery at rest. However, it does not guarantee that the battery is healthy. A battery can retain normal resting voltage yet have poor cranking capability or reduced capacity. A load, conductance, or starting test provides stronger evidence of actual battery condition.
Is 12.2 volts enough to start a car?
A 12.2V resting reading generally indicates a battery that is only partially charged, often around 50% under common reference conditions. It may still start a vehicle, but starting performance depends on battery health, temperature, engine requirements, and electrical connections. If voltage is this low, charging and retesting is preferable to assuming the battery is defective.
How do I know if my car battery is bad?
Look at several clues together: resting voltage, cranking behavior, charging voltage, physical condition, and battery-test results. A battery that repeatedly loses charge, struggles during cranking, or fails a proper load or conductance test deserves further attention. Do not diagnose failure from resting voltage alone because a charged battery can still have poor starting capability.
Can a multimeter tell if a car battery is bad?
A multimeter can reveal resting voltage and help identify charging or cranking-voltage problems, but it cannot completely establish battery health by itself. Resting voltage primarily indicates state of charge. A dedicated load or conductance tester provides more information about starting capability and battery condition, especially when the multimeter reading appears normal but starting performance remains poor.
How do I test a car battery without removing it?
You can normally test an installed battery by accessing its positive and negative terminals and measuring DC voltage with a multimeter. The battery does not usually need to be removed for resting-voltage, cranking, or charging-voltage checks. Some vehicles locate the battery beneath the trunk floor or elsewhere, so consult the owner’s manual for the correct testing points.
How do I test a car battery while the car is running?
Start by measuring the battery with the engine off, then start the engine and measure across the same terminals. Running voltage reflects charging-system behavior rather than simply battery health. Many conventional systems produce roughly 13.7–14.7V while running, but exact specifications vary by vehicle and charging strategy, so manufacturer information should take priority.
What should a car battery voltage drop to when starting?
There is no single universal cranking-voltage number that applies perfectly to every vehicle, battery, temperature, and test method. What matters is whether voltage falls excessively during starter operation compared with the manufacturer’s specification. A substantial drop can indicate weak battery performance, poor connections, cable resistance, or starter-circuit problems and should trigger deeper diagnosis.
How can I tell if the battery or alternator is bad?
Test the battery at rest, during cranking, and with the engine running. Low resting voltage may indicate discharge or battery problems; excessive cranking drop points toward battery or starting-circuit issues; abnormal running voltage suggests charging-system problems. If the battery repeatedly becomes discharged, test both the charging system and possible parasitic drain before replacing the battery.
How often should I test my car battery?
Test the battery whenever starting becomes noticeably slower, electrical symptoms appear, the vehicle has experienced a no-start event, or the battery repeatedly loses charge. It is also sensible to check it before demanding periods of use, such as very hot or cold weather. Regular testing can reveal declining performance before a complete starting failure occurs.
Can I test an AGM battery with a multimeter?
Yes. A multimeter can measure the voltage of an AGM battery just as it can measure a conventional 12V battery. However, voltage alone does not provide a complete AGM health assessment. For deeper diagnosis, use a battery analyzer that supports AGM batteries and enter the correct battery type and rated CCA when required.
Does a car battery need to be fully charged before testing?
It depends on what you are trying to determine. Resting voltage can reveal the battery’s current state of charge even when it is not fully charged. However, a low reading should not automatically be interpreted as battery failure. Charging the battery properly and then allowing it to rest before retesting can separate simple discharge from a deeper problem.
Wrap Up
Testing a car battery is more than checking whether a multimeter displays 12.6 volts. A reliable diagnosis combines resting voltage, cranking performance, charging voltage, and, when necessary, load or conductance testing.
If your battery repeatedly loses charge or struggles to start the engine, don’t replace it based on voltage alone. Check the battery’s condition, charging system, connections, and starting circuit to identify the real cause before spending money on a replacement.
