A vacuum leak can begin as something deceptively minor: a faint hiss, a slightly uneven idle, or an engine that feels less refined than it did last week. Yet because modern engines depend on carefully controlled airflow, even a small unwanted opening in the intake or vacuum system can disturb the air-fuel mixture, trigger diagnostic codes, and create drivability problems.
A vacuum leak occurs when unwanted air enters the engine’s intake or vacuum system and bypasses the airflow control or measurement strategy the engine is designed to use. Common signs include rough or high idle, hissing sounds, hesitation, misfires, stalling, poor fuel economy, and lean-condition trouble codes such as P0171 or P0174.
The important point is that a symptom is not a diagnosis. A rough idle does not automatically mean a leaking hose, and a P0171 code does not automatically mean an intake leak. Good diagnosis follows the evidence—from operating conditions and fuel-trim behavior to physical inspection and, when necessary, a smoke test.
What Is a Vacuum Leak?
A vacuum leak is easier to understand when you stop thinking of “vacuum” as something the engine stores and start thinking of it as a pressure difference created by engine operation. That pressure difference is useful for controlling several systems, but an unintended opening can allow air to enter where the engine is not expecting it.
What engine vacuum actually means
In a conventional gasoline engine, the pistons move downward during the intake stroke while the throttle restricts the amount of air entering the intake manifold. This creates pressure below atmospheric pressure in the manifold under many operating conditions. That pressure difference is commonly referred to as intake manifold vacuum.
Vacuum is not a separate substance flowing through the engine. It is simply a condition in which the pressure inside a system is lower than the surrounding atmospheric pressure. The amount of vacuum changes with throttle position, engine speed, engine load, valve timing, altitude, and engine design.
The intake manifold sits at the center of this process. Air passes through the intake tract and throttle body before entering the manifold and then the cylinders. Sensors and the engine control module use measurements such as mass airflow, manifold pressure, oxygen content, and engine speed to determine how much fuel and ignition control the engine requires.
That is why an opening in the wrong location matters. The engine-management system is designed around an expected relationship between airflow, pressure, throttle position, fuel delivery, and combustion. A leak can disturb that relationship.
SAE research has specifically examined leakage in engine air-intake systems as a source of emissions and drivability problems, including methods capable of distinguishing leaks occurring before and after the throttle.
What makes a vacuum leak different from a normal air leak?
The key concept is unmetered air.
On many modern gasoline engines that use a mass airflow (MAF) sensor, the engine control module estimates incoming air partly from the amount of air measured by the MAF. If additional air enters the intake system downstream of that measurement point, the engine may receive more air than the control system expected.
Imagine a carefully measured recipe. The engine calculates fuel delivery based on the amount of air it believes is entering. If an unexpected opening allows additional air into the system, the final mixture may no longer match the intended recipe.
The oxygen sensors can detect the resulting combustion condition, and the engine control module may respond by increasing fuel delivery. This is why a leak can eventually produce positive short-term or long-term fuel trims and, if the correction becomes excessive, a lean-condition diagnostic trouble code.
However, not every intake leak behaves identically. Some vehicles use speed-density strategies centered around a MAP sensor rather than a conventional MAF-based strategy. Turbocharged engines also have different pressure conditions from naturally aspirated engines, and a leak before the throttle is not diagnostically identical to a leak after it.
So the most useful definition is this:
A vacuum or intake leak is an unintended opening that changes the engine’s expected air-pressure or airflow conditions and can disturb mixture control, idle quality, emissions, or drivability.
Why vacuum leaks often affect idle more than acceleration
One of the most useful clues in vacuum-leak diagnosis is when the symptom is strongest.
At idle, the throttle opening is small and the engine’s total airflow requirement is relatively low. A leak that allows a fixed amount of unwanted air into the intake can therefore represent a larger proportion of the engine’s total airflow.
As engine speed and load increase, the engine draws substantially more air through its normal intake path. The same leak may represent a smaller percentage of total airflow, so its effect can become less obvious.
This is why some vehicles develop a rough, unstable idle but feel surprisingly normal once the accelerator is pressed.
It is not universal. A large leak, a leak associated with a particular cylinder, or another fault occurring alongside the leak can produce hesitation, misfires, poor acceleration, or stalling under other conditions.
The pattern matters more than any single symptom.
10 Common Vacuum Leak Symptoms
Vacuum-leak symptoms can overlap with ignition, fuel-delivery, sensor, and throttle-control problems. The most useful approach is therefore to recognize the pattern rather than treating any one symptom as conclusive evidence.
1. Rough or Shaking Idle
A rough idle is one of the classic signs of an intake or vacuum leak. The engine may feel as though it is trembling slightly, the RPM may fluctuate, or the exhaust note may become uneven while the vehicle is stationary.
The reason is straightforward: an unwanted air path can disturb the air-fuel mixture or alter the amount of air reaching individual cylinders. At idle, that disturbance can be proportionally significant.
A driver may describe the sensation as “the engine is shaking,” “the RPM is hunting,” or “it feels like it wants to stall.” In some cases, the check-engine light will also appear because the engine control module detects a lean condition or misfire.
But rough idle is not a vacuum-leak diagnosis by itself. Worn engine mounts, dirty injectors, ignition-coil faults, spark-plug problems, low fuel pressure, throttle-body issues, compression problems, and sensor faults can produce similar sensations.
The strongest evidence comes from combining the idle symptom with other clues such as hissing, positive fuel trims, lean codes, or a leak confirmed through testing.
2. High or Fluctuating Idle RPM
A vacuum leak can allow additional air into the engine even when the throttle is nearly closed. Depending on the engine’s control strategy and the size and location of the leak, the result may be a higher-than-normal idle speed.
The driver may notice the tachometer sitting above its normal idle range, dropping and rising repeatedly, or taking longer than expected to settle after the accelerator is released.
A high idle can also occur because of an electronic throttle problem, an idle-control issue on older engines, incorrect throttle-body adaptation, coolant-temperature information, or other control faults. That makes confirmation important.
If high idle appears together with a hissing sound and positive fuel-trim correction, an intake-side air leak becomes a stronger hypothesis.
A useful diagnostic code in some applications is P0507, Idle Control System RPM Higher Than Expected, but that code should be treated as evidence of an idle-control condition—not proof that a vacuum hose has failed.
3. Hissing, Whistling, or Sucking Noise
A distinct hissing, whistling, or sucking sound from the engine compartment can be one of the most satisfying clues to identify because the leak may literally announce itself.
The sound is often easiest to hear at idle, particularly when the hood is open and the surrounding environment is quiet. It may originate from a cracked vacuum hose, loose connection, intake manifold gasket, PCV connection, brake-booster hose, or another opening exposed to pressure difference.
The location of the sound matters more than how loud it is.
A faint hiss close to the brake booster tells a different story from a hiss near the throttle body or intake manifold. Likewise, a whistle that changes when a hose is moved can provide a valuable diagnostic clue.
Small leaks may not make an audible sound at all. A smoke test can therefore reveal a leak that your ears cannot.
4. Check Engine Light
A vacuum leak can trigger the check-engine light when the engine control module detects the consequences of unwanted air entering the system.
The computer does not normally display a message saying “vacuum hose cracked.” Instead, it monitors the results of the condition through sensors and control parameters. Depending on the vehicle, the resulting codes can include lean-condition, idle-control, or misfire-related faults.
This distinction is important:
A diagnostic trouble code usually identifies a detected condition or system problem, not the exact component that failed.
For example, P0171 means System Too Lean, Bank 1, while P0174 means System Too Lean, Bank 2. A vacuum leak can cause either code, but fuel-delivery problems, sensor errors, exhaust leaks affecting oxygen-sensor readings, and other faults can also create a lean condition.
Treat the code as the beginning of a diagnostic path—not the end.
5. Lean Codes Such as P0171 and P0174
P0171 and P0174 are among the codes most often associated with suspected vacuum or intake leaks.
A lean condition means the engine-management system is detecting an air-fuel mixture condition that is too lean for the expected operating range. The control module may respond by adding fuel, which appears as positive fuel-trim correction.
The diagnostic opportunity becomes much stronger when you examine fuel trims at different operating conditions rather than merely reading the stored code.
For example, if fuel correction is substantially worse at idle and improves as engine speed rises, an unmetered-air problem becomes more plausible because the relative influence of the leak is greater at low airflow. Professional diagnostic procedures often use this type of comparison to separate an intake-air problem from other causes of lean operation.
But there is no universal fuel-trim number that proves a leak on every engine. Vehicle strategy, sensor accuracy, engine condition, fuel quality, and operating temperature all matter.
A careful technician therefore asks:
What is the code? What are the trims doing? Under what conditions did the code set? And can the suspected leak be physically confirmed?
6. Hesitation or Poor Acceleration
A vacuum or intake leak can sometimes produce hesitation when the driver presses the accelerator.
The engine may hesitate briefly, stumble, or feel as though power delivery is delayed. This can happen when the additional air disturbs mixture control or when the leak interacts with throttle transitions and engine-management corrections.
However, acceleration hesitation is an especially broad symptom. Fuel-pressure problems, restricted injectors, ignition faults, MAF errors, throttle-position problems, boost leaks on turbocharged engines, and transmission behavior can all feel similar.
The operating pattern is therefore valuable.
If the engine is roughest at idle, improves with increased RPM, and has positive fuel trims, an intake leak deserves attention. If the engine becomes worse under load while fuel trims remain abnormal across the operating range, fuel delivery or another issue may deserve greater priority.
7. Engine Misfires
A vacuum leak can contribute to an engine misfire when the resulting mixture disturbance becomes severe enough to interfere with stable combustion. Because an intake leak is only one possible cause, learn more about diagnosing an engine misfire before replacing intake components.
The driver may feel a vibration, hear an uneven exhaust note, or see the check-engine light flash during a significant misfire event. Diagnostic codes may include P0300 for random or multiple-cylinder misfire or cylinder-specific P0301, P0302, P0303, and similar codes.
A leak near a particular intake runner can potentially affect one cylinder more strongly than others. That is one reason the physical location of an intake leak matters.
Still, replacing an intake gasket simply because a P0301 code appeared would be poor diagnostic practice. Spark plugs, ignition coils, injectors, compression, valve-train problems, and wiring faults can also cause cylinder-specific misfires.
The better sequence is misfire → operating conditions → supporting data → physical test.
8. Stalling at Idle or Low Speed
A severe air leak can make it difficult for the engine to maintain stable idle speed. In extreme cases, the engine may stall when coming to a stop, when the transmission is placed in gear, or when electrical or mechanical loads are added.
A driver may notice that the engine starts normally but dies shortly afterward, or that it stalls when the accelerator is released.
The severity of the leak is important. A tiny crack may cause only a slight roughness, while a disconnected hose can create a much larger air path.
Stalling should not automatically be blamed on vacuum. A failing crankshaft-position sensor, fuel-pressure problem, dirty throttle body, electronic throttle fault, ignition failure, or charging-system issue can create the same basic complaint.
If the vehicle repeatedly stalls in traffic, diagnosis should be treated as a safety and reliability priority rather than a cosmetic engine-tuning issue.
9. Poor Fuel Economy
It may seem counterintuitive that an air leak can increase fuel consumption, but modern engine management can compensate for unwanted air by adding fuel.
When oxygen-sensor feedback indicates that the mixture is lean, the engine control module may increase injector pulse width to bring combustion back toward the desired range. That additional fuel can contribute to reduced fuel economy.
The relationship is not always dramatic. A small leak may produce little noticeable change in fuel consumption, especially if the control system successfully compensates.
Poor fuel economy also has dozens of other possible causes, including underinflated tires, dragging brakes, excessive idling, incorrect fuel pressure, faulty sensors, thermostat problems, injector issues, and driving conditions.
For that reason, fuel economy is best treated as supporting evidence rather than a standalone indicator.
10. Hard Brake Pedal or Changes in Brake Assist
A vacuum-related problem becomes much more serious when it involves the brake-booster system.
Many vehicles use vacuum-assisted power brakes. The brake booster uses vacuum to reduce the amount of pedal force the driver needs to apply. If available vacuum assistance is lost, the brake pedal can feel significantly harder and the driver may need to apply substantially more force.
NHTSA technical material explains that loss of vacuum power-brake assistance can increase required pedal force and potentially increase stopping distance.
A hard brake pedal should therefore not be dismissed as “just another vacuum leak symptom.”
If a suspected vacuum problem is accompanied by a noticeably harder brake pedal, altered braking response, or other brake-system concerns, avoid treating the vehicle as an ordinary DIY engine problem. Have the braking system evaluated promptly.
Vacuum Leak Symptoms at Different Driving Conditions
The circumstances under which a symptom appears can be more informative than the symptom itself. A refined diagnosis looks at when the engine behaves differently, not simply whether it behaves differently.
Symptoms at idle
Idle is often where a small intake leak reveals itself most clearly. You may see unstable RPM, vibration, hissing, or a tendency to stall.
Because the engine is consuming relatively little air at idle, an unwanted air path can represent a larger share of the total airflow. Fuel-trim behavior may therefore become more abnormal at idle than at higher engine speeds.
That pattern is a useful clue, not a verdict.
Symptoms during acceleration
During acceleration, the engine’s airflow increases dramatically. A small leak can become less important relative to the total amount of air entering through the normal intake path.
Some vehicles consequently feel smoother once the throttle opens. Others experience hesitation or stumble during throttle transitions, particularly if the leak is substantial or interacts with another problem.
On turbocharged vehicles, the diagnostic picture becomes more complicated because intake pressure can move from vacuum to boost. A leak that behaves one way under vacuum may produce a different symptom under boost.
Symptoms while cruising
At steady cruise, the engine may operate under relatively light load with the throttle only partly open. A small leak can contribute to fuel-trim corrections without producing a dramatic sensation to the driver.
The check-engine light may therefore be the first obvious sign.
A scan tool can reveal information that the driver’s senses cannot, particularly when fuel trims and freeze-frame data are available.
Symptoms during cold starts
Cold-start behavior is influenced by temperature, enrichment strategy, fuel vaporization, ignition, and sensor inputs. A leak may become more noticeable during this period because the engine’s control strategy differs from its fully warmed operating state.
A vehicle that starts and runs poorly for the first minute before becoming smoother deserves broader diagnosis rather than an automatic vacuum-leak verdict.
Symptoms when the engine is warm
A leak can become more apparent once the engine reaches operating temperature, particularly if rubber hoses, seals, or gaskets change slightly with heat.
If a symptom consistently appears only when the engine is warm, capture scan data at that moment. Diagnostic testing is much more valuable when performed under the conditions in which the problem actually occurs.
Symptoms that disappear under heavy throttle
A classic pattern is:
rough at idle → smoother at higher RPM → symptom returns when the throttle closes.
That pattern can support an intake-leak hypothesis because the relative influence of a fixed leak decreases as normal airflow increases.
It is not proof, but it is useful information that should guide the next test.
What Causes a Vacuum Leak?
The source of unwanted air can be surprisingly ordinary: a hardened hose, a loose connection, a deteriorated gasket, or a damaged component that has been exposed to years of heat cycles.
Cracked or disconnected vacuum hoses
Rubber and plastic components in an engine compartment live in a difficult environment. Heat, vibration, oil vapor, ozone, and repeated flexing can gradually change their condition.
A hose may develop a small split near its end, become brittle, or pull away from a fitting. The opening can be difficult to see because it may hide underneath a protective sleeve or appear only when the hose is flexed.
Connections deserve just as much attention as the hose itself.
Intake manifold gasket failure
The intake manifold must maintain a reliable seal against the cylinder head or related sealing surfaces. A deteriorated gasket can allow air to enter where it should not.
Depending on engine design, the resulting symptoms may affect one bank, multiple cylinders, or overall idle quality.
An intake manifold gasket problem can be particularly deceptive because the leak may not be visible from above.
Throttle body gasket leak
The throttle body controls airflow into the engine, and its mounting surface must seal correctly.
A damaged or improperly seated throttle-body gasket can create an unwanted air path. Because the throttle body is directly involved in airflow control, a leak in this area can affect idle behavior.
PCV valve or PCV hose problems
The positive crankcase ventilation (PCV) system routes crankcase vapors back into the engine for combustion. It uses controlled airflow rather than simply being an unrestricted opening. Because the PCV system is connected to intake vacuum, a clogged PCV valve can create related engine-running symptoms and deserves separate inspection.
A damaged PCV hose, failed valve, cracked fitting, or related seal can introduce air in an unintended manner.
Because PCV components are often tucked behind or underneath intake components, they are easy to overlook during a quick visual inspection.
Brake booster or booster hose leak
The brake booster is another important vacuum-related component on vehicles that use vacuum power assistance.
A leaking booster diaphragm, hose, check valve, or connection can create engine symptoms while simultaneously affecting brake assistance.
This is one area where diagnostic priority should be higher because the issue crosses from engine drivability into vehicle safety.
Intake boot or duct leak
The flexible intake duct between the air-measurement system and throttle body can develop cracks, especially around bends and clamps.
Not every crack produces a traditional “vacuum leak,” particularly when the damaged section is upstream of a MAF sensor or under positive pressure on a turbocharged engine. Nevertheless, an intake duct leak can create unmetered-air or air-management problems.
Always consider where the leak occurs relative to the airflow sensors and throttle.
EGR-related vacuum problems
Older and some specific engine designs use vacuum-controlled exhaust-gas-recirculation components or vacuum-operated control circuits.
A failed vacuum line or control diaphragm can create an intake-system problem or cause the EGR system to behave incorrectly.
Modern engines increasingly use electronically controlled EGR systems, so the exact diagnostic path depends heavily on the vehicle.
Vacuum reservoir or check-valve failure
Some vehicles use vacuum reservoirs and check valves to maintain vacuum for specific systems.
A failed check valve can allow vacuum to bleed away or permit pressure to move in the wrong direction. A damaged reservoir or hose can create similar problems.
These faults can be harder to identify because the symptom may appear only under particular operating conditions.
Damaged intake components
Seals, fittings, resonators, caps, sensors, and molded intake components can all become potential leak points.
The lesson is simple: do not search only for a cracked rubber hose.
Modern engine compartments contain a network of carefully sealed pathways. A leak can hide in a gasket, plastic fitting, diaphragm, boot, valve, or connection that looks perfectly normal at first glance.
Where Are Vacuum Leaks Most Commonly Found?
Finding the leak is often harder than recognizing the symptom. The most productive search begins with components that experience heat, vibration, pressure differences, or repeated movement.
Vacuum hose connections
Start with visible hoses, tees, elbows, and connection points. Look for cracking, looseness, hardening, oil contamination, abrasion, and disconnected ends.
Pay particular attention to the last few centimeters of a hose near a fitting. That is where bending stress can concentrate.
Intake manifold
Inspect the manifold-to-head sealing area and any vacuum ports attached to the manifold.
Because many intake manifolds sit beneath other components, a visual inspection may not be sufficient.
PCV system
Follow the PCV hose network from the crankcase toward the intake. Look for brittle plastic, collapsed hoses, cracked elbows, damaged seals, and improperly seated connections.
Throttle body
Inspect the throttle-body mounting area and gasket, as well as nearby intake ducting and vacuum connections.
A dirty throttle body can cause some of the same symptoms as an air leak, so avoid replacing the gasket or throttle body without evidence.
Brake booster circuit
Inspect the large vacuum hose leading to the booster, the check valve, and the surrounding connections.
If the brake pedal is unusually hard, the issue deserves immediate attention.
EVAP and purge system
The evaporative-emissions system connects fuel-vapor components to the engine intake. A purge valve that is stuck open can behave like an unwanted air path under conditions where it should be closed.
This is one reason a suspected “vacuum leak” can sometimes turn out to be an emissions-system problem.
How to Diagnose a Vacuum Leak
Good diagnosis is less about finding a clever trick and more about building a chain of evidence. The strongest process combines scan data, operating conditions, physical inspection, and a confirmation test. When a leak is too small or hidden to locate visually, automotive smoke machines can make the escape point much easier to identify.
Step 1 — Scan the vehicle for trouble codes
Begin with an OBD-II scan when the vehicle supports it.
Record all stored and pending diagnostic trouble codes, not just the most obvious one. Save freeze-frame information if available because it can show the engine temperature, load, RPM, and other conditions present when the fault was recorded.
Common related codes may include P0171, P0174, P0300-series misfires, and idle-control codes such as P0507, but exact codes vary by manufacturer and engine.
Do not erase the codes before recording them. Doing so can remove valuable diagnostic information.
Step 2 — Check fuel trims
Fuel trim is one of the most powerful diagnostic clues available through a scan tool.
Short-term fuel trim (STFT) reflects relatively immediate corrections, while long-term fuel trim (LTFT) represents learned correction over time. Positive values generally mean the control system is adding fuel; negative values generally indicate fuel is being removed.
The precise interpretation depends on the vehicle and scan-tool convention, so avoid treating one universal percentage as a pass/fail threshold.
What matters is the pattern.
If fuel correction is substantially more positive at idle and improves as engine speed increases, unmetered air becomes a stronger possibility. If correction remains high under different operating conditions, fuel delivery, MAF measurement, or another fault may deserve closer examination.
Professional diagnostic routines may compare total fuel correction at idle and elevated RPM to separate vacuum-leak patterns from other causes.

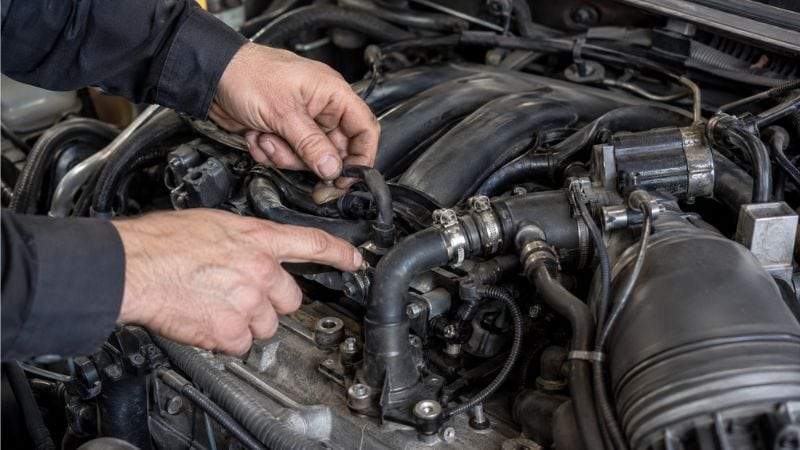

Step 3 — Perform a visual inspection
Before buying parts, inspect the system.
Look for disconnected hoses, cracks, loose clamps, damaged intake boots, broken plastic fittings, deteriorated PCV components, and obvious gasket or sealing problems.
Move flexible hoses gently while the engine is off and cool enough to inspect safely. Do not pull aggressively on brittle plastic components.
A careful inspection often finds the simplest answer, and it costs almost nothing.
Step 4 — Listen for the leak
Start the engine and listen carefully if doing so is safe for the vehicle and your working environment.
A narrow hiss can sometimes be localized by listening around suspected areas. A mechanic’s stethoscope or suitable acoustic tool can help with difficult cases.
Do not place hands, clothing, tools, or loose objects near belts, fans, pulleys, or other moving components.
Remember that an absence of sound does not rule out a leak. Tiny openings can be completely silent.
Step 5 — Use a smoke test
A smoke test is one of the most effective ways to locate an intake-system leak because it converts an invisible airflow problem into a visible escaping plume.
A professional smoke machine introduces a controlled amount of smoke into the appropriate intake system while the engine is off. The technician then observes joints, hoses, gaskets, fittings, and other possible escape points.
The strength of the method is localization.
Instead of saying, “The engine has a lean code, so it must be the intake gasket,” the technician can actually identify where smoke is escaping.
Research into air-intake leak diagnosis has demonstrated that even relatively small leakage areas can be detected under appropriate diagnostic conditions.
Step 6 — Vacuum gauge testing
A mechanical vacuum gauge can provide information about intake-manifold behavior.
A steady reading can suggest a relatively stable engine condition, while certain fluctuating or abnormal patterns can point toward mechanical or valve-train problems.
However, vacuum-gauge interpretation is highly dependent on engine design, altitude, camshaft timing, throttle position, and manufacturer specifications.
Use it as a diagnostic instrument rather than a magic number.
Step 7 — Professional diagnostic confirmation
If the leak cannot be located visually, if the engine has multiple codes, or if fuel-trim data does not fit a simple leak pattern, professional diagnosis is usually more efficient than replacing parts at random.
Modern engine systems are interconnected. SAE research has demonstrated the diagnostic challenge of separating intake leaks from sensor faults, including manifold leaks versus manifold-pressure sensor problems.
That is why experienced diagnosis resembles craftsmanship: the goal is not to replace the most obvious component, but to identify the actual failed point with the least unnecessary work.
Vacuum Leak Test Methods Compared
Different tests answer different questions. A visual inspection asks whether the defect is obvious; fuel-trim analysis asks how the engine is responding; a smoke test asks where the physical opening is.
| Test method | Best use | Difficulty | Main limitation |
| Visual inspection | Obvious damaged hoses and fittings | Low | Misses hidden leaks |
| Listening | Audible leaks | Low | Silent leaks remain undetected |
| OBD-II scan | Detecting related conditions | Low–Medium | Codes do not identify the failed part |
| Fuel-trim analysis | Understanding mixture correction | Medium | Requires interpretation |
| Vacuum gauge | Evaluating manifold behavior | Medium | Readings vary by engine |
| Smoke test | Locating physical leaks | Medium/Professional | Requires appropriate equipment and procedure |
Is a smoke test the best vacuum-leak test?
For locating a physical intake-system leak, a properly performed smoke test is often one of the most efficient confirmation methods.
Its greatest advantage is that it answers a question other tests may leave unresolved: where is the air escaping?
It is particularly useful when the leak is small, hidden behind components, or impossible to hear.
It does not replace scan data. A complete diagnosis still considers the engine’s operating conditions, codes, fuel trims, and other evidence.
Can an OBD2 scanner detect a vacuum leak?
An OBD-II scanner can detect the effects of a vacuum leak but usually cannot directly identify the exact hole, hose, gasket, or fitting responsible.
For example, a scanner may reveal P0171, positive fuel trims, unstable idle speed, or misfire information. Those findings can support a vacuum-leak hypothesis.
The physical confirmation may still require inspection, testing, or smoke.
Can you find a vacuum leak without a smoke machine?
Yes. Some leaks can be found through visual inspection, listening, fuel-trim analysis, vacuum testing, or carefully isolating individual vacuum circuits.
However, the absence of an obvious leak does not mean there is no leak.
If the evidence continues to point toward unmetered air and the source remains elusive, a smoke test is usually more productive than repeatedly replacing unrelated components.
DIY Vacuum Leak Checks: What You Can Safely Do at Home
A few basic checks are reasonable for a mechanically comfortable vehicle owner, but engine-bay diagnosis should never become a contest of improvised tricks. A safe test that gives useful evidence is better than an aggressive method that creates a fire or injury hazard.
What you can inspect yourself
With the engine off, inspect accessible vacuum hoses, PCV lines, intake ducts, clamps, connectors, and visible gasket areas.
Look for cracks, loose fittings, hardened rubber, oil-soaked sections, disconnected lines, and damaged plastic.
If you find a hose that is clearly split or disconnected, document its original routing before removing it. Many vacuum systems depend on specific hose routing.
What tools are useful
A basic OBD-II scanner can provide codes and live data. A flashlight helps reveal cracks in dark areas. A hand vacuum pump can be useful for certain vacuum-operated components when the vehicle’s service procedure calls for it.
A professional smoke machine is considerably more useful for locating difficult leaks.

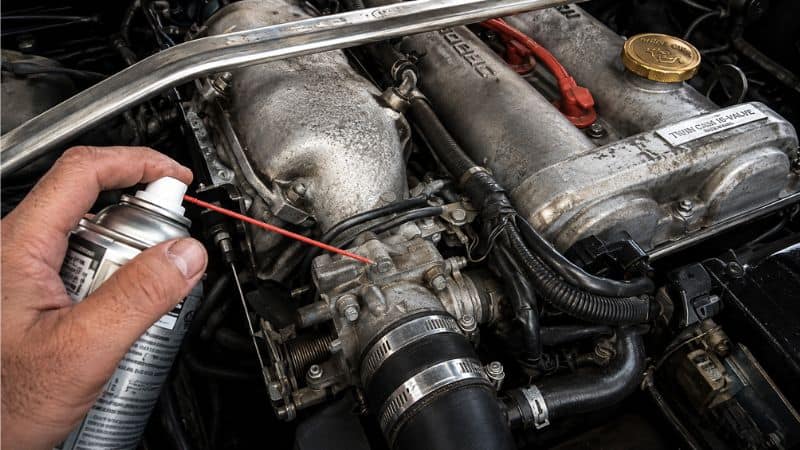

Why improvised flammable spray tests require caution
Some traditional diagnostic methods involve spraying flammable substances around an operating engine and watching for RPM changes.
This carries obvious risks. A hot exhaust component, electrical fault, ignition source, or backfire can turn a diagnostic experiment into a fire.
For modern vehicles, there is little reason to encourage readers to use hazardous improvised methods when safer diagnostic equipment exists.
Never spray flammable chemicals around a running engine unless the specific manufacturer-approved procedure explicitly calls for it and appropriate professional safety controls are in place.
When to stop DIY diagnosis
Stop and seek professional help if the vehicle has repeated stalling, significant misfires, a hard brake pedal, fuel leaks, overheating, severe electrical problems, or any condition that makes working around the running engine unsafe.
The goal is not simply to find a leak. The goal is to restore the vehicle safely and correctly.

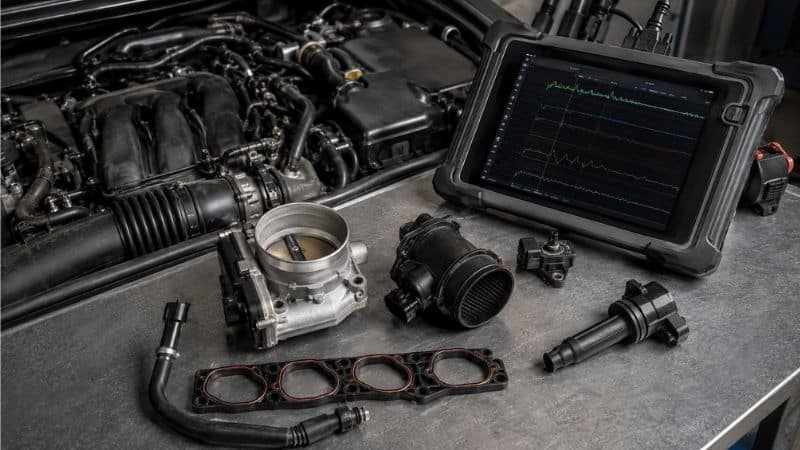

Vacuum Leak vs Other Problems That Look the Same
One of the biggest mistakes in engine diagnosis is assuming that a familiar symptom belongs to a familiar component. Rough idle is a symptom. P0171 is a condition code. Neither one tells you which part to replace.
Vacuum leak vs bad MAF sensor
A faulty or contaminated MAF sensor can cause incorrect airflow measurement and create symptoms that resemble an intake leak.
Both problems may produce lean operation, poor idle quality, hesitation, and check-engine codes. Because airflow and pressure sensors can produce symptoms similar to an intake leak, understanding car sensors and their functions can help narrow the diagnosis.
The distinction comes from evidence. If the MAF reports implausible airflow, if fuel-trim behavior does not match a typical intake-leak pattern, or if a smoke test finds no leak, the MAF becomes more relevant.
Do not replace the MAF simply because a lean code appeared.
Vacuum leak vs dirty throttle body
A dirty throttle body can interfere with airflow control and produce unstable or elevated idle speed. A stuck-open IAC valve can also produce rough idle, fluctuating RPM and stalling, so comparing idle air control valve symptoms with the vehicle’s scan data is worthwhile.
A vacuum leak can do something similar by allowing air around the intended throttle restriction.
A physical inspection, throttle-position data, adaptation information where available, and leak testing can separate the two.
Vacuum leak vs faulty oxygen sensor
An oxygen sensor can report abnormal mixture information because the engine is genuinely running lean, but the sensor itself can also be faulty.
This is why replacing an oxygen sensor immediately after seeing a lean code can be premature.
First establish whether the engine is actually receiving too much air, too little fuel, or receiving inaccurate sensor information.
Vacuum leak vs fuel injector problem
A restricted or malfunctioning injector can create a lean condition without any intake leak. f the fuel-trim pattern does not fit an air leak, the next step may be to check fuel pressure and investigate fuel-delivery problems.
Fuel pressure, injector operation, cylinder-specific behavior, and fuel-trim patterns help distinguish fuel-delivery problems from unwanted air entry.
If fuel correction remains high under conditions where a vacuum leak should have less relative influence, fuel delivery deserves closer attention.
Vacuum leak vs ignition coil
An ignition coil can cause rough running and misfire without affecting the engine’s basic airflow system. Ignition faults can mimic an intake leak, including issues involving spark plug wires arcing, which can produce rough idle and misfires.
A cylinder-specific misfire that follows a coil when components are swapped for diagnostic purposes may point toward ignition rather than intake air.
The key is to follow evidence rather than replacing parts based on symptom similarity.
Vacuum leak vs PCV failure
PCV faults can be part of the vacuum-leak family themselves.
A stuck-open PCV valve, damaged hose, or failed diaphragm can create an unintended air path or disturb crankcase ventilation.
Because the PCV system is connected to the intake, it deserves inspection whenever the symptom pattern suggests unmetered air.
Vacuum leak vs intake manifold gasket failure
An intake manifold gasket failure is a type of intake-system leak, but identifying it requires evidence that the manifold sealing area is actually leaking.
Smoke testing can be especially valuable here because the gasket may be hidden from direct inspection.
Vacuum leak vs EVAP leak
This distinction deserves special attention.
An EVAP leak concerns the evaporative-emissions system that stores and manages fuel vapors. The system uses its own pressure and leak-detection strategies.
An intake vacuum leak, by contrast, directly concerns unintended air entering the engine’s intake system.
A vehicle can have an EVAP problem without having a conventional intake vacuum leak. SAE research describes dedicated diagnostic methods for detecting very small EVAP-system leaks, demonstrating that the two systems are technically distinct.
Vacuum Leak vs EVAP Leak: What’s the Difference?
The words “vacuum” and “leak” can make two different problems sound like one. They are not interchangeable, and separating them can prevent unnecessary parts replacement.
An intake or vacuum leak generally involves unwanted air entering the engine’s intake or a vacuum-controlled circuit. It may influence idle quality, mixture control, fuel trims, or drivability.
An EVAP leak involves the evaporative-emissions system that contains and manages fuel vapors from the fuel tank and related components.
EVAP systems use components such as the fuel tank, vapor lines, charcoal canister, purge valve, vent components, and leak-detection hardware. The engine may interact with this system through the purge circuit, but an EVAP leak is not automatically an intake manifold leak.
This distinction matters when reading diagnostic codes.
A code associated with EVAP-system integrity should lead you toward the EVAP diagnostic procedure rather than toward randomly replacing vacuum hoses.
The purge valve is a particularly interesting crossover component. If it allows airflow when it should be closed, it can create an engine-running problem that resembles an intake leak. That requires testing the purge system rather than assuming the intake manifold is damaged.
The broader lesson is simple:
An engine can have a vacuum-related symptom without having a conventional cracked vacuum hose. Diagnosis should identify the system and failure mode before parts are replaced.
Can You Drive With a Vacuum Leak?
Whether you can drive with an intake leak depends on the severity, location, symptoms, and systems affected. A tiny drivability fault is not equivalent to a vacuum problem that affects braking assistance. If the leak is severe enough to cause repeated stalling, the broader issue of why a car shuts off while driving becomes a safety concern.”
A small engine vacuum leak may allow a vehicle to continue operating for some time, particularly if the engine control system can compensate. That does not mean continued driving is ideal. Prolonged lean operation, repeated misfires, poor drivability, and worsening component damage can turn a modest problem into a more expensive one.
A severe leak that causes stalling is a much greater concern. An engine that dies when you approach an intersection or release the accelerator can create an immediate traffic hazard.
Brake-booster involvement is even more important.
If the brake pedal becomes noticeably harder, braking assistance changes, or the driver must apply substantially more force than usual, do not treat the vehicle as safe simply because it still moves. NHTSA technical analysis explains that depletion or loss of vacuum assistance can require additional brake-pedal force and may increase stopping distance.
The practical rule is:
If the symptom affects braking, repeated engine stalling, or severe misfire, prioritize safety and professional inspection over continued driving.
How Much Does It Cost to Fix a Vacuum Leak?
There is no single “vacuum leak repair price” because the leak may be a five-minute hose replacement or a labor-intensive intake-manifold repair.
A useful way to think about the bill is:
Repair cost = diagnosis + replacement part + labor + accessibility + vehicle complexity.
A cracked hose or loose fitting may be inexpensive to correct. A PCV component can also be relatively straightforward depending on its location.
An intake manifold gasket is different. The part itself may not be exceptionally expensive, but labor can increase substantially if the manifold is buried beneath other components.
A brake-booster problem can be more significant still because the component, associated hoses, and diagnostic requirements are different from a simple engine vacuum line.
Diagnostic charges also deserve consideration. A smoke test or professional scan may add an initial cost, but it can be cheaper than replacing several perfectly good components while searching for the actual problem.
Vacuum hose replacement
A straightforward hose repair is generally among the simpler possibilities.
The important part is using a hose appropriate for the temperature, vacuum conditions, routing, and application. Ordinary generic tubing is not automatically a suitable replacement for every engine vacuum circuit.
PCV hose or valve repair
PCV repairs vary widely by vehicle. Some valves are easy to access; others are integrated into larger assemblies or positioned in difficult locations.
The cost should therefore be evaluated according to the actual component rather than a universal “PCV repair price.”
Intake manifold gasket replacement
This is where labor can dominate the repair.
The manifold may require removal of electrical connectors, fuel-system components, brackets, hoses, or other parts before the gasket can be accessed.
Throttle-body gasket repair
The repair may be relatively straightforward on some vehicles but can involve additional procedures or adaptation on electronically controlled throttle systems.
Brake booster repair
Brake-booster replacement or related vacuum-system repairs deserve professional attention because the system directly affects braking assistance.
Diagnostic and smoke-test cost
Paying for an accurate diagnosis can feel frustrating when the suspected repair looks inexpensive. But a precise diagnosis protects against the much more expensive habit of replacing components based on guesswork.
A technician who spends time identifying the actual leak can often save the owner money even when the initial diagnostic charge is higher than a quick visual inspection.
How to Fix a Vacuum Leak
The correct repair depends entirely on the confirmed source. There is no universal “vacuum leak fix,” because the failure could be a hose, gasket, valve, fitting, diaphragm, intake component, or another part of the system.
Replace damaged vacuum hoses
If a hose is cracked, split, collapsed, or disconnected, replace it with a component appropriate for the application.
Route the replacement exactly as intended. A hose that is technically connected but kinked, rubbing against a hot surface, or attached to the wrong port can create a new problem.
Replace failed gaskets
A confirmed intake manifold or throttle-body gasket leak generally requires removal and replacement according to the vehicle manufacturer’s procedure.
Surface cleanliness, correct gasket orientation, bolt sequence, and torque specifications matter.
Repair intake components
Damaged boots, fittings, caps, resonators, and other intake components should be repaired or replaced according to manufacturer recommendations.
Temporary patches may not withstand engine heat, oil vapor, vibration, or pressure changes.
Replace PCV components
If the PCV valve, hose, diaphragm, or related fitting is confirmed to be faulty, replace the defective component rather than simply cleaning everything indiscriminately.
Some modern PCV systems use integrated assemblies that require a different repair procedure from older replaceable valves.
Repair brake-booster vacuum circuits
Brake-booster faults should be handled according to the vehicle’s brake-system service procedure.
Because this is a safety-critical system, do not improvise repairs with unsuitable hoses, fittings, or temporary plugs.
Clear codes and verify the repair
A repair is not complete merely because the engine sounds better.
After the confirmed leak is repaired, verify that the original symptoms have changed, fuel-trim behavior has improved where applicable, and diagnostic codes do not return under the conditions that originally triggered them.
This final verification is what turns a repair into a diagnosis-backed repair.
How to Confirm the Vacuum Leak Is Actually Fixed
The most overlooked step in many repair articles is confirmation. Replacing a suspected component is not the same thing as proving that the original problem has disappeared.
If the vehicle had an unstable idle, the idle should be evaluated again under the same operating conditions. If fuel trims were abnormal, compare the post-repair values with the original data.
If a smoke test identified a leaking hose or gasket, repeat the appropriate test when necessary to confirm that the leak has disappeared.
If the check-engine light was associated with a specific operating condition, reproduce that condition safely and determine whether the fault returns.
What should improve immediately?
A large intake leak may produce an immediate change in idle quality after repair.
A smaller leak may produce a subtler improvement, and learned fuel-trim corrections may take time or require the vehicle’s specified drive cycle before the control system fully reflects the change.
Do not assume that the absence of an immediate dramatic improvement means the repair failed.
What if the check-engine light stays on?
First determine whether the light is simply still illuminated because the code remains stored or whether the fault has actually returned.
Some systems require a number of successful drive cycles before a monitor completes. A scan tool can reveal whether the code is current, pending, or historical.
If the same code returns after the repair, revisit the diagnosis rather than replacing another component at random.
What if the symptoms remain after replacing a hose?
This is exactly why diagnostic confirmation matters.
The hose may not have been the only leak. Another component may be leaking, or the original symptom may have been caused by something else entirely.
Return to the evidence: fuel trims, operating conditions, codes, smoke testing, ignition, fuel delivery, sensor data, and mechanical condition.
Vacuum Leak Diagnostic Decision Tree
A useful diagnostic path begins with the symptom and progressively narrows the possibilities instead of jumping straight to a replacement part.
Rough or high idle
↓
Scan for codes and record freeze-frame data
↓
Lean code or positive fuel-trim correction?
↓
Compare fuel-trim behavior at idle and higher RPM
↓
Correction substantially worse at idle?
↓
Inspect vacuum, PCV and intake system
↓
No obvious leak?
↓
Perform appropriate smoke testing
↓
Leak found?
→ Repair and verify
No leak found?
→ Investigate MAF/MAP, fuel delivery, oxygen-sensor data, ignition and mechanical causes
The key principle is that the decision tree should become more specific as evidence accumulates.
This approach is more reliable than saying, “P0171 means vacuum leak,” because diagnostic trouble codes describe detected conditions, while the underlying cause still needs to be established.
Vacuum Leak Symptoms by Symptom Severity
Not every leak deserves the same level of urgency. A practical severity model helps drivers distinguish an irritating drivability fault from a problem that should immediately change their driving plans.
Level 1: Mild
The engine may have a subtle roughness, faint hiss, or small fuel-trim correction.
The vehicle may still drive normally, but diagnosis is worthwhile before the problem develops further.
Level 2: Moderate
Symptoms become more noticeable: unstable idle, hesitation, high RPM, recurring check-engine light, or measurable drivability changes.
At this point, the vehicle should be inspected rather than simply monitored indefinitely.
Level 3: Severe
Repeated stalling, significant misfires, major loss of drivability, or an engine that struggles to remain running indicate a more serious condition.
Continued driving can create safety problems and may expose the engine or emissions system to additional stress.
Level 4: Brake-system involvement
A hard brake pedal or noticeable loss of brake assistance moves the issue into a different category.
Do not treat a brake-booster vacuum problem as an ordinary engine tune-up issue. The braking system is safety-critical, and increased pedal effort or reduced assistance can affect stopping performance.
FAQs About Vacuum Leak Symptoms
What are the most common symptoms of a vacuum leak?
The most common signs include rough or unstable idle, unusually high idle RPM, hissing or whistling sounds, hesitation, misfires, stalling, poor fuel economy, and a check-engine light. Lean-condition codes such as P0171 or P0174 may also appear. However, none of these symptoms alone proves a leak; confirmation requires appropriate inspection and diagnostic testing.
What does a vacuum leak sound like?
A vacuum leak often sounds like a faint hiss, whistle, or sucking noise coming from the engine compartment. The sound may become easier to hear at idle and may change when engine speed changes. Small leaks can be completely silent, however, so the absence of noise does not rule out an intake-system leak.
Can a vacuum leak cause rough idle?
Yes. A vacuum or intake leak can introduce unwanted air and disturb the engine’s expected air-fuel balance, making idle unstable or rough. The effect is often more noticeable at idle because the leak represents a larger proportion of total engine airflow. Ignition, fuel, sensor, throttle, and mechanical problems can cause similar symptoms.
Can a vacuum leak cause high RPM?
Yes. An intake leak can allow additional air into the engine when the throttle is nearly closed, potentially causing the engine to idle faster than intended. Some vehicles may also set an idle-control code such as P0507. However, electronic throttle faults, idle-control problems, and incorrect adaptation can also produce high idle speed.
Can a vacuum leak cause stalling?
A sufficiently large leak can contribute to stalling, particularly at idle or when the accelerator is released. The engine may struggle to maintain stable combustion or idle control. Stalling can also result from fuel, ignition, throttle, sensor, charging, or crankshaft-position problems, so repeated stalling should be diagnosed systematically rather than automatically attributed to vacuum.
Can a vacuum leak cause a check-engine light?
Yes. A vacuum leak can disturb the air-fuel mixture enough for the engine control module to detect a lean condition, idle-control problem, or misfire. The resulting diagnostic code may point toward the affected system rather than the exact leaking component. Scan the vehicle and use the code as diagnostic evidence, not as automatic proof of a failed part.
What codes indicate a vacuum leak?
P0171 and P0174 are commonly associated with lean conditions that may be caused by an intake leak, while P0507 can occur with an idle-speed problem. Misfire codes such as P0300-series faults can also accompany severe air leaks. None is exclusive to vacuum leaks, so codes should be interpreted alongside fuel trims, operating conditions, and physical testing.
Can a vacuum leak cause P0171?
Yes. P0171 indicates that the engine control system has detected a lean condition on Bank 1, and an intake or vacuum leak can be one cause. Other possibilities include fuel-delivery problems, inaccurate airflow measurement, exhaust-related issues, or sensor faults. Fuel-trim behavior at idle and higher RPM can help determine whether unmetered air is likely.
Can a vacuum leak cause P0174?
Yes. P0174 indicates a lean condition on Bank 2, and an intake-system leak can contribute to it. The code does not identify the failed component. Depending on the engine, technicians may examine fuel trims, intake and PCV circuits, airflow measurement, fuel delivery, and exhaust or oxygen-sensor information before confirming the actual cause.
Can a vacuum leak cause misfires?
Yes. An intake leak can disturb mixture control enough to create unstable combustion and misfire, especially at idle. It may produce a random misfire code or, depending on leak location and engine design, affect particular cylinders more strongly. Ignition, injector, compression, valve-train, and fuel-pressure problems can also cause misfires and must be considered.
Can a vacuum leak affect fuel economy?
It can. When unwanted air creates a lean condition, the engine control module may compensate by adding fuel. If the correction is significant or the engine continues operating abnormally, fuel economy may suffer. Poor mileage has many other causes, however, so fuel consumption should be treated as supporting evidence rather than definitive proof of an intake leak.
The Bottom Line: Diagnose the Leak, Not Just the Symptom
Vacuum-leak diagnosis rewards patience. A rough idle, hissing sound, lean code, or high RPM can provide an important clue, but none should be treated as a complete diagnosis.
The most reliable path is to connect the evidence: symptom → operating condition → diagnostic data → likely system → physical confirmation → repair → verification.
A particularly useful clue is the relationship between idle and higher engine speed. If fuel correction or drivability improves significantly as airflow increases, an unmetered-air problem becomes more plausible—but it still needs confirmation. SAE research and modern diagnostic practice both demonstrate why separating air-intake leakage from sensor and fuel-system faults requires more than reading a single code.
And remember the one exception that deserves special urgency: if the suspected vacuum problem affects brake assistance, treat it as a safety issue rather than an ordinary engine-performance complaint. Loss of vacuum power-brake assistance can increase pedal effort and affect stopping performance.
The best repair is rarely the one that replaces the most parts. It is the one that identifies the actual leak, confirms the diagnosis, restores the intended air-management system, and proves that the original problem has been resolved.
