A mass air flow sensor is small enough to fit in the palm of your hand, yet its information can influence fuel delivery, engine performance, emissions, idle quality, and overall drivability. When the sensor begins reporting inaccurate airflow, the engine control unit may make decisions based on a distorted picture of what is happening inside the intake system.
Learning how to test a MAF sensor properly can prevent an unnecessary replacement and help identify faults that imitate a failed sensor. A diagnostic trouble code, a rough idle, or a weak acceleration complaint may point toward the MAF, but none of those signs proves that the sensor itself is defective.

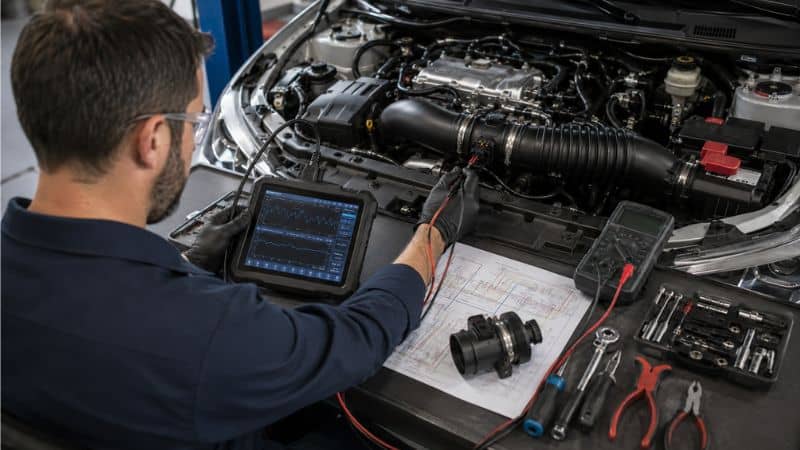

The most reliable diagnosis combines physical inspection, live-data analysis, electrical testing, and system comparison. In other words, the sensor should be evaluated as part of the engine-management system—not as an isolated component.
Quick Answer: How Do You Test a MAF Sensor?
Testing a mass air flow sensor begins with the air path and ends with the engine’s response. The goal is not simply to find a voltage at the connector; it is to determine whether the sensor is measuring airflow accurately and communicating correctly with the engine control unit.
To test a MAF sensor, inspect the intake system and electrical connector, scan for diagnostic trouble codes, examine live airflow data, and verify the sensor’s power, ground, and signal circuits using vehicle-specific specifications. A MAF sensor should not be replaced solely because a code is present or because one generic voltage value appears abnormal.
A practical test sequence looks like this:
- Inspect the air filter, intake duct, sensor housing, and connector.
- Scan for diagnostic trouble codes and review freeze-frame information.
- Check MAF live data at operating temperature and idle.
- Observe how the airflow reading changes as engine speed increases.
- Compare airflow information with fuel trims and other engine data.
- Test the electrical circuit using the correct wiring diagram.
- Confirm the repair through a road test and a final scan.
The central principle is simple: a MAF signal can be present without being accurate. A sensor may produce a changing voltage while underreporting airflow, overreporting airflow, or responding too slowly to changing engine conditions.
What Does a MAF Sensor Do?
The MAF sensor measures the mass of air entering the engine and sends that information to the engine control unit, often called the ECU or PCM. Most modern sensors are installed in the intake tract between the air-filter housing and the engine, where they can monitor the air moving toward the throttle body or intake manifold.
The engine needs an appropriate amount of fuel for the amount of air entering the cylinders. If the ECU believes less air is entering than is actually present, it may command too little fuel. If it believes more air is entering, it may command too much. Oxygen-sensor feedback and fuel-trim adjustments can correct some errors, but large or persistent inaccuracies may cause poor performance, warning lights, increased fuel consumption, or drivability problems.
The MAF is only one part of a larger electronic network; our guide to car sensors and their functions explains how airflow, oxygen, temperature, pressure, and position sensors work together.”
How the ECU Uses MAF Data
The ECU may use airflow information to calculate injector pulse width, estimate engine load, adjust ignition timing, manage emissions-related functions, and support other control strategies. On some vehicles, airflow information may also influence transmission behavior or torque-management calculations.
The exact role varies by vehicle. Some engines rely heavily on the MAF sensor, while others use a combination of MAF, manifold absolute pressure, intake-air temperature, throttle position, and engine-speed data.
Why Incorrect MAF Data Causes Multiple Symptoms
A MAF sensor that underreports airflow may contribute to a lean condition because the ECU initially commands less fuel than the engine requires. A sensor that overreports airflow may encourage excessive fueling and contribute to a rich condition.
However, the ECU is not passive. It monitors oxygen-sensor feedback and may change short-term and long-term fuel trims to compensate. This is why a vehicle can sometimes continue running reasonably well even when the MAF data is inaccurate.
The sensor’s output should therefore be interpreted alongside the engine’s corrective behavior. A MAF reading that appears plausible by itself may become suspicious when fuel trims are unusually high.
Symptoms That May Indicate a Bad MAF Sensor
A failing mass air flow sensor can produce several recognizable symptoms, but these symptoms overlap with many other engine problems. The most useful approach is to treat them as diagnostic clues rather than proof.
Common signs include a rough or unstable idle, hesitation during acceleration, reduced engine power, stalling, poor fuel economy, difficult starting, a check engine light, or a noticeable change in throttle response. Some vehicles may enter a reduced-power or protective operating mode.
Symptoms of an Underreporting MAF
When a sensor reports less airflow than the engine is actually receiving, the ECU may initially command insufficient fuel. The oxygen sensors may then detect a lean exhaust condition and cause positive fuel-trim corrections.
Possible signs include hesitation, weak acceleration, lean-related diagnostic codes, surging, or a loss of power under load. The symptoms may become more noticeable when the engine demands more air.
Symptoms of an Overreporting MAF
An overreporting sensor may cause the ECU to command more fuel than necessary. Depending on the vehicle and the degree of error, this may contribute to poor fuel economy, a rich exhaust condition, rough operation, excessive exhaust odor, or negative fuel-trim values.
A rich condition should not automatically be blamed on the airflow sensor. Fuel-injector leakage, excessive fuel pressure, incorrect temperature information, and other faults can produce similar results.
Symptoms That Often Point Elsewhere
A rough idle that improves substantially as engine speed rises may suggest an intake leak, especially if fuel trims are much more positive at idle than at higher RPM. A consistent misfire may be caused by an ignition, injector, compression, or mechanical problem rather than airflow measurement.
A restricted exhaust, weak fuel pump, clogged fuel filter, damaged intake duct, leaking PCV system, or incorrect oxygen-sensor information may also create symptoms commonly associated with a bad MAF.
A MAF-related symptom identifies a diagnostic direction, not a confirmed failed component.
Before Testing: Identify Your MAF Sensor Type
Not every airflow sensor uses the same operating principle or produces the same electrical output. Identifying the sensor type before testing helps prevent incorrect meter settings, false conclusions, and accidental damage.
Modern hot-film and hot-wire designs are common, but older vehicles may use vane-style airflow meters. Some sensors provide an analog voltage signal, while others communicate airflow through a frequency-based output. The correct test procedure depends on the vehicle’s design.
Hot-Wire MAF Sensors
A hot-wire sensor uses a fine electrically heated element positioned in the intake airflow. As air passes over the element, it removes heat. The sensor’s electronics respond to the cooling effect and convert the information into an airflow signal.
Because the sensing wire is delicate, it should never be touched, scraped, brushed, or cleaned with an unsuitable chemical. Even a small amount of damage can alter its calibration.
Hot-Film MAF Sensors
Hot-film sensors use a thin sensing element rather than an exposed wire. They are compact and widely used in modern vehicles. Bosch identifies hot-film air-mass meters as sensors that measure intake-air mass and send the information to the engine control unit for accurate mixture preparation.
Although hot-film designs may appear more protected than exposed hot-wire sensors, they still require careful handling. The sensing area should not be contacted with tools or cloth.
Vane-Type Airflow Meters
Older vane-style systems use a movable flap or measuring plate. Incoming air pushes against the vane, and the movement is converted into an electrical signal.
These units may be tested differently from modern hot-film sensors. Mechanical wear, spring problems, internal electrical-track damage, or restricted vane movement can affect performance.
Frequency-Based MAF Sensors
Some airflow sensors communicate using frequency rather than a simple changing DC voltage. As airflow changes, the output frequency may change.
A multimeter set only to DC voltage may not provide meaningful information for this design. A frequency-capable meter or oscilloscope may be required.
How to Identify Your Sensor Before Testing
Begin with the vehicle’s service information. Confirm the make, model, year, engine, and sensor part number. Then obtain the correct wiring diagram and test procedure.
Do not identify a sensor solely by the number of connector pins. Similar-looking sensors can use different pin assignments and signal strategies.
Tools You Need to Test a MAF Sensor
The right tool depends on the depth of diagnosis required. A basic inspection may require only a light and simple hand tools, while a complete electrical diagnosis may require a scan tool, digital multimeter, wiring information, and possibly an oscilloscope.
| Tool | What it helps test | Best use |
| Basic OBD2 scanner | Trouble codes and limited live data | Initial diagnosis |
| Advanced scan tool | MAF data, fuel trims, freeze frame | System-level evaluation |
| Digital multimeter | Power, ground, voltage, frequency | Circuit testing |
| Back-probe leads | Connector testing without damage | Electrical diagnosis |
| Oscilloscope | Signal quality and fast dropouts | Advanced troubleshooting |
| Vehicle service information | Specifications and pin locations | Every test stage |
An advanced scan tool is often the most useful starting point because it allows the sensor to be evaluated while the engine is operating. A multimeter is valuable for confirming electrical conditions but may not reveal whether the airflow data is accurate under real driving load.
Safety Rules Before Testing a MAF Sensor
Electrical testing around a running engine requires care. A small mistake can damage a connector, short a circuit, create an inaccurate reading, or expose the technician to moving components.
Do Not Probe a Wire Without a Wiring Diagram
Always identify power, ground, reference, and signal circuits using vehicle-specific information.
Never assume connector-pin locations from another vehicle. Pin assignments can change by model year, engine, sensor design, and manufacturer.
Avoid Piercing Wire Insulation When Possible
Use suitable back-probe leads at the rear of the connector instead of puncturing insulation. Pierced wires may allow moisture to enter and create future corrosion.
Keep Tools Away From Belts and Fans
When testing with the engine running, secure meter leads and keep hands, clothing, jewelry, and loose objects away from moving components.
Never Touch the Sensing Element
Do not touch the hot wire or sensing film. Avoid compressed air, brushes, shop towels, or tools inside the sensor housing.
Step 1 — Inspect the MAF Sensor and Air-Intake System
The air path should be inspected before electrical testing. A perfectly functional sensor cannot compensate for unmetered air entering through a cracked intake tube or for airflow disturbed by an incorrectly installed component.
Think of the intake system as the sensor’s measuring chamber. If air bypasses the measuring point, the ECU receives an incomplete account of what the engine is actually consuming.
Check the Air Filter
Inspect the air filter for excessive dirt, damage, collapse, incorrect installation, or signs that debris has passed through it. A quality air filter helps protect sensitive intake components by reducing the entry of dust and particles.
A severely restricted filter may reduce airflow. An improperly fitted filter may allow contamination to reach the sensor.
Inspect the Intake Tube for Cracks
Examine the duct between the MAF housing and throttle body. Flex the rubber sections carefully and inspect folds and undersides.
Cracks after the sensor can allow unmetered air into the engine. The MAF may report the air passing through it accurately, but the engine receives additional air that the ECU does not initially know about.
Check for Loose Clamps
Verify that intake clamps are secure and that every hose is properly connected. Pay attention to PCV hoses, breather lines, vacuum connections, and any fittings installed near the MAF.
Inspect the Electrical Connector
Look for broken locking tabs, bent terminals, corrosion, oil contamination, loose wiring, or signs that the harness has been pulled.
Gently move the harness while monitoring live data if an intermittent fault is suspected. Do not pull individual wires aggressively.
Look for Oil or Dirt Contamination
A contaminated sensing element may respond slowly or report inaccurate airflow. Oil from an over-oiled aftermarket air filter, crankcase vapor, dust, or intake deposits may contribute to contamination.
Visible dirt does not prove that cleaning will restore the sensor. Cleaning should be followed by live-data testing.
Step 2 — Scan for MAF-Related Trouble Codes
Diagnostic trouble codes provide useful evidence, but they must be interpreted in context. A code identifies a condition recognized by the ECU; it does not automatically identify the failed part.
Before clearing any codes, record the code numbers, freeze-frame information, engine temperature, RPM, load, vehicle speed, and related sensor data.
P0100 — MAF Circuit Malfunction
P0100 generally indicates a problem involving the airflow-sensor circuit. Possible causes include wiring damage, connector problems, loss of power or ground, sensor failure, or a control-module issue.
P0101 — MAF Range or Performance
P0101 usually indicates that the reported airflow does not match what the ECU considers reasonable for current operating conditions.
This may be caused by a faulty sensor, but intake leaks, restricted airflow, contamination, incorrect installation, exhaust problems, or other engine faults may also contribute.
P0102 — MAF Circuit Low Input
A low-input code may result from a low signal, wiring fault, poor connection, sensor failure, or another circuit problem.
The correct response is to test the circuit—not to install a replacement sensor immediately.
P0103 — MAF Circuit High Input
A high-input code may indicate an unusually high signal, a wiring problem, a short to voltage, or a sensor fault.
P0104 — Intermittent MAF Signal
An intermittent code suggests unstable or interrupted information. Inspect the connector and harness carefully, especially if the fault occurs during vibration or changes in engine movement.
| Code category | What it may indicate | What it does not prove |
| Circuit code | Electrical fault | Sensor failure |
| Range/performance code | Implausible airflow | Defective MAF |
| Intermittent code | Unstable signal | Failed sensing element |

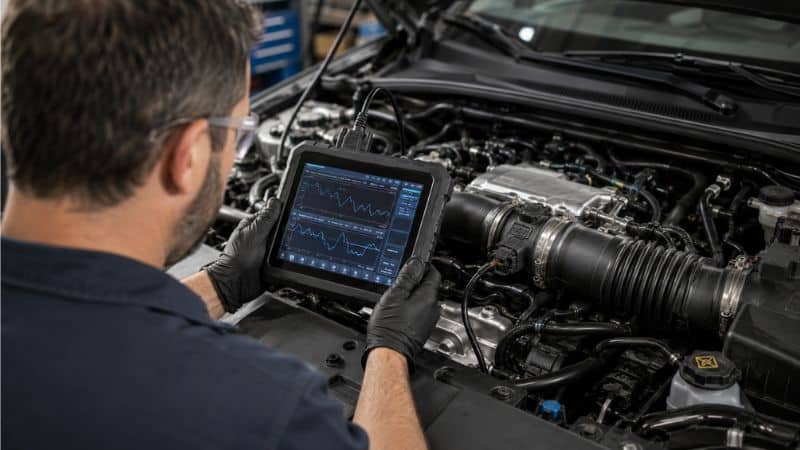

Step 3 — Test the MAF Sensor With an OBD2 Scanner
Live-data testing is often the most informative way to evaluate a MAF sensor because it shows what the ECU is receiving while the engine is operating. Instead of testing only whether electricity reaches the sensor, you can observe whether airflow information behaves logically.
How to Find MAF Live Data
Connect a compatible scan tool and locate the live-data parameter for mass airflow. It may appear as:
- MAF
- Mass Air Flow
- Airflow Rate
- Air Mass
- g/s
- kg/h
Some scan tools display manufacturer-specific data in addition to standard OBD2 parameters.
Start the engine and allow it to reach normal operating temperature unless the manufacturer’s procedure specifies otherwise.
Record Data at Warm Idle
Observe the MAF reading at a stable idle. Record:
- Engine RPM
- MAF airflow
- Coolant temperature
- Intake-air temperature
- Short-term fuel trim
- Long-term fuel trim
- Calculated engine load
Do not judge the airflow value by itself. A reading that looks low on one engine may be normal on another because engine displacement, design, altitude, temperature, and operating conditions influence airflow.
Observe the MAF Reading During a Controlled RPM Increase
Increase engine speed gradually and observe whether airflow rises smoothly.
A healthy signal should generally respond in a logical direction as airflow demand increases. Sudden dropouts, flat sections, delayed response, or implausible changes may indicate a sensor or circuit problem.
Avoid using aggressive throttle snaps as the only test. A brief spike may be difficult for a slow scan tool to capture accurately.
Test the MAF Under Road Load
A sensor may appear acceptable at idle but become inaccurate when airflow demand increases. If safe and permitted, record data during a controlled road test.
Observe airflow during steady cruising and moderate acceleration. Compare the readings with engine speed, calculated load, throttle position, and fuel trims.
A road test may reveal weak response, signal dropouts, or airflow values that do not increase logically under load.
Compare MAF Data With Fuel Trims
Fuel trims show how much correction the ECU is applying after evaluating oxygen-sensor feedback.
If the MAF reports too little air, the ECU may add fuel, creating positive fuel trims. If the MAF reports too much air, the ECU may remove fuel, creating negative trims.
However, fuel trims do not identify the MAF by themselves. An intake leak, fuel-delivery problem, exhaust leak, injector issue, or sensor error may also influence correction.
The MAF Data Triangle
The most useful interpretation combines three related measurements:
- MAF airflow
- Engine operating conditions
- Fuel-trim response
The MAF Data Triangle compares measured airflow, engine operating conditions, and fuel correction to determine whether abnormal readings are more likely to come from the sensor or from another engine problem.
For example, a low airflow reading combined with high positive fuel trims may support an underreporting MAF—but the intake system must still be checked for leaks.
What Is a Normal MAF Reading?
There is no single MAF reading that is normal for every vehicle. Universal charts can be useful as rough educational references, but they should not replace manufacturer specifications.
A normal MAF value depends on engine displacement, RPM, temperature, altitude, load, engine design, and the manufacturer’s calibration.
Why Engine Size Changes MAF Readings
A larger engine generally consumes more air than a smaller engine at the same RPM and operating condition. A 4.0-liter engine and a 1.5-liter engine should not be expected to show identical airflow values at idle.
Why Temperature and Altitude Matter
Air density changes with temperature and atmospheric pressure. High altitude generally reduces air density, which can affect measured airflow.
Modern engine-management systems account for environmental conditions, but the technician must also consider them when interpreting data.
Why Idle Readings Alone Are Not Enough
A sensor may produce a plausible idle value but respond incorrectly during acceleration. Conversely, an unusual idle value may be caused by a vacuum leak, unstable idle control, mechanical condition, or another system fault.
The most useful test examines airflow across several operating conditions.
How to Use Vehicle-Specific Specifications
Consult the factory service manual or reliable manufacturer-level information. Compare the actual reading with the expected value under the specified conditions.
When specifications are unavailable, use system correlation rather than relying on a universal number.

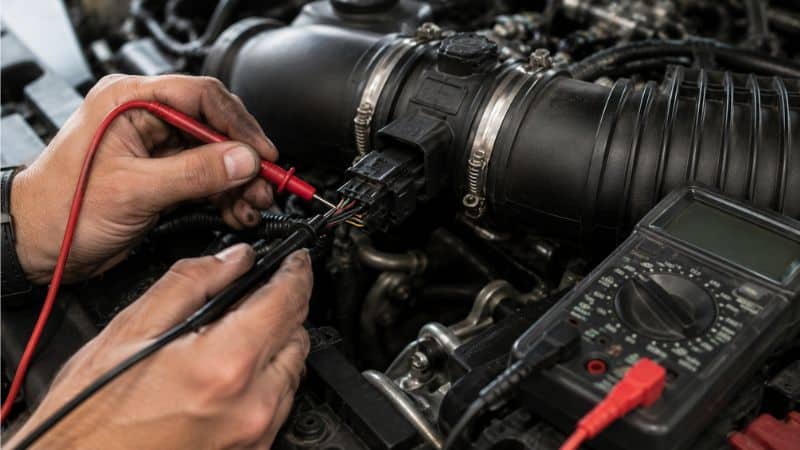

Step 4 — Test a MAF Sensor With a Multimeter
A multimeter can verify whether the sensor has the electrical conditions needed to operate. It can also measure certain analog or frequency-based outputs, depending on the sensor design.
Before beginning, obtain the correct wiring diagram. Confirm the connector orientation and identify the power, ground, and signal terminals.
Find the Correct Wiring Diagram
Use vehicle-specific service information. Confirm:
- Vehicle year
- Engine code
- Sensor part number
- Connector pin numbers
- Wire colors
- Expected circuit values
Do not rely only on wire color because manufacturers may change colors between production years.
Test the MAF Power Supply
Set the meter to the appropriate voltage range. Connect the negative meter lead to a verified ground and back-probe the power terminal.
Turn the ignition on or follow the manufacturer’s required operating condition.
A missing supply voltage may indicate a blown fuse, damaged wiring, relay issue, connector fault, or control-system problem. It does not automatically indicate a failed sensor.
Test the Sensor Ground
A ground circuit should be tested for quality, not merely continuity.
A continuity test with the circuit unpowered may show a connection even when the ground performs poorly under load. Voltage-drop testing can provide more useful information when the system is operating.
An excessive voltage drop may indicate corrosion, damaged wiring, a loose terminal, or a poor ground connection.
Test the MAF Signal Wire
Back-probe the correct signal terminal while leaving the sensor connected. Start the engine and observe the output according to the manufacturer’s procedure.
For an analog sensor, the signal may change as airflow changes. For a frequency-output sensor, use the meter’s frequency function if supported.
Do not assume that every sensor begins at the same voltage or reaches the same maximum value. The correct reading depends on the design.
Observe Signal Change as RPM Increases
Increase engine speed gradually while monitoring the signal.
A functioning analog signal often changes smoothly as airflow changes. A signal that remains fixed, drops unexpectedly, or changes erratically may require further investigation.
A multimeter updates relatively slowly. Short interruptions may not be visible, which is why an oscilloscope is useful for intermittent faults.
Interpret the Result
Use the following logic:
- Correct power and ground but no valid signal may indicate a sensor or signal-circuit fault.
- Missing power suggests a supply problem.
- Poor ground suggests a circuit problem.
- A changing signal does not prove accurate airflow measurement.
- A stable signal may still be incorrectly calibrated.
Bosch diagnostic information notes that comparing throttle-position and air-mass signals can help evaluate whether the airflow signal rises appropriately with changing demand.
How to Test a Frequency-Based MAF Sensor
Some MAF sensors communicate airflow through a changing frequency. In these systems, the signal is measured in hertz rather than interpreted as a simple DC voltage.
Why Voltage Mode May Give Misleading Results
A meter in DC-voltage mode may display an average value that does not reveal the sensor’s actual operating behavior.
If the sensor uses a pulse or frequency signal, the meter must be configured appropriately.
Testing Frequency With a Multimeter
Connect the meter according to the service procedure and select frequency mode. Monitor the output at idle and as engine speed changes.
The frequency should respond logically to changing airflow, but the expected values are vehicle-specific.
Using an Oscilloscope
An oscilloscope displays the signal over time. It can reveal:
- Frequency changes
- Signal noise
- Missing pulses
- Intermittent dropouts
- Irregular waveform behavior
Identifying Signal Dropouts
If the vehicle hesitates intermittently but the meter reading appears stable, use an oscilloscope or high-speed data recording.
A brief interruption may be too fast for a standard meter or slow scan tool to capture.
How to Test a MAF Sensor With an Oscilloscope
An oscilloscope is an advanced diagnostic tool, but it provides information that a multimeter cannot. It shows the shape and continuity of the signal rather than only a numerical value.
Connect the scope using the correct test points and settings. Then observe the signal at idle, during controlled RPM changes, and under conditions that reproduce the complaint.
A healthy waveform should respond consistently to airflow changes. Noise, sudden interruptions, irregular frequency changes, or unexpected flat sections may indicate a sensor, connector, wiring, or interference problem.
The waveform should always be compared with vehicle-specific information. A waveform that looks unusual may still be normal for a particular design.
Can You Test a MAF Sensor by Unplugging It?
Disconnecting the MAF sensor is a common informal test, but it is not a complete diagnostic method.
Unplugging a MAF sensor may provide a useful clue because the ECU can switch to a substitute airflow strategy. However, improved engine operation does not prove that the MAF sensor is defective.
When the sensor is disconnected, the ECU may use estimated airflow values based on throttle position, engine speed, manifold pressure, or programmed backup calculations.
If the engine runs better, the original MAF data may be inaccurate. However, the change may also alter fueling enough to mask another problem.
Use the unplug test only as supporting evidence. Follow it with live-data analysis and electrical testing.
Can You Test a MAF Sensor Without a Multimeter?
A multimeter is helpful but not essential for every diagnostic stage. A scan tool can often provide more useful information about actual sensor performance.
Visual Inspection
Inspect the intake system, air filter, sensor housing, connector, and wiring. Look for contamination, cracks, loose clamps, and unmetered-air paths.
Scan-Tool Testing
Observe MAF live data at idle, during RPM changes, and under load. Compare airflow with fuel trims and engine operating conditions.
Controlled Unplug Test
Disconnect the sensor only when appropriate and observe whether the engine behavior changes. Treat the result as a clue rather than proof.
Why These Methods Cannot Confirm Every Failure
Without electrical testing, a power, ground, connector, or wiring fault may be missed. Without live data, a sensor may appear electrically functional while reporting inaccurate airflow.
The strongest diagnosis combines both approaches.
How to Tell Whether the MAF Sensor Is Dirty or Failed
Contamination and internal failure can produce similar symptoms. A dirty sensor may respond slowly or report inaccurate airflow, while a failed sensor may have electrical damage, calibration loss, or internal electronic problems. If contamination appears to be affecting the sensor, follow this step-by-step guide on how to clean a MAF sensor before deciding whether replacement is necessary.
Cleaning may help when contamination is the cause, but it cannot repair a damaged sensing element or failed internal circuit.
| Finding | Recommended action |
| Visible contamination with plausible data | Clean and retest |
| No power or ground | Repair the circuit |
| Incorrect but stable airflow data | Inspect intake and compare systems |
| Intermittent signal | Check connector and harness |
| Damaged sensing element | Replace the sensor |
| Incorrect readings after verification | Consider replacement |
Use only a cleaner specifically designed for MAF sensors. Allow the component to dry completely before reconnecting it.
Problems That Can Mimic a Bad MAF Sensor
Many MAF replacements fail to solve the original problem because the sensor was blamed for a condition created elsewhere. A complete diagnosis should investigate other systems capable of changing airflow, fuel delivery, combustion quality, or sensor interpretation.
Vacuum Leaks After the MAF
An intake leak after the sensor allows air to enter without being measured. The ECU may initially command too little fuel, causing positive fuel trims and lean-related codes.
A smoke test can help locate leaks.
Restricted Air Filters
A severely restricted filter may reduce airflow and affect performance. Inspect the filter before condemning the sensor.
Fuel Delivery Problems
Low fuel pressure, restricted fuel flow, or injector problems can create lean symptoms even when airflow data is correct. Because low fuel pressure can produce hesitation and lean-running symptoms similar to a MAF fault, you may also need to check fuel pressure without a gauge.
Ignition Misfires
A misfire may introduce oxygen into the exhaust, causing oxygen-sensor feedback that resembles a lean condition. If the engine began running rough shortly after ignition maintenance, review these common problems after changing spark plugs before blaming the airflow sensor.
Exhaust Leaks
An exhaust leak upstream of an oxygen sensor may draw outside air into the exhaust stream and influence sensor interpretation.
Oxygen-Sensor Problems
Incorrect oxygen-sensor information can affect fuel trims. DENSO diagnostic guidance emphasizes investigating the underlying cause of rich or lean feedback rather than replacing a sensor solely because its signal appears fixed.
MAP Sensor Problems
On vehicles that use both MAF and MAP information, disagreement between the sensors may indicate a problem with either sensor, the intake system, or engine operation.
Incorrectly Installed Intake Components
A damaged seal, incorrect sensor orientation, loose housing, or improperly fitted intake part may disturb airflow measurement. HELLA has documented cases in which attention to the connection and sealing around the airflow sensor was important during diagnosis.
| Symptom | MAF possible? | Other possible causes | Useful confirmation |
| Rough idle | Yes | Vacuum leak, ignition fault | Fuel trims and smoke test |
| Hesitation | Yes | Fuel pressure, ignition | Live-data road test |
| Lean code | Yes | Intake or exhaust leak | MAF and trim comparison |
| Poor acceleration | Yes | Fuel restriction, exhaust restriction | Load-based data |
| Poor economy | Yes | Rich fueling, temperature data | Fuel trims and sensor correlation |
The MAF Confirmation Ladder
A reliable diagnosis should progress from simple inspection to system-level verification. The MAF Confirmation Ladder organizes that process so that no major diagnostic layer is skipped.
The MAF Confirmation Ladder is a five-level method that moves from physical inspection to electrical testing, dynamic response, system correlation, and repair verification.
Level 1: Airflow Path
Inspect the filter, intake duct, clamps, hoses, sensor installation, and possible unmetered-air paths.
Level 2: Electrical Circuit
Verify power, ground, connector condition, and signal integrity.
Level 3: Sensor Response
Observe how airflow data changes at idle, during controlled RPM increases, and under driving load.
Level 4: System Agreement
Compare MAF information with fuel trims, MAP data, oxygen-sensor response, engine load, and operating conditions.
Level 5: Repair Verification
After cleaning or replacement, confirm improved behavior, appropriate live data, stable fuel trims, and the absence of returning codes.
The ladder prevents a common diagnostic error: replacing a sensor after only one test.
How to Test a MAF Sensor After Cleaning
Cleaning should be treated as a repair attempt that requires verification. A cleaner sensor may look better without producing better data.
Allow the sensor to dry completely. Reinstall it carefully, ensuring correct orientation and proper sealing.
Record live data before cleaning whenever possible. Then compare the following after the engine reaches operating temperature:
- MAF reading at idle
- Response to increasing RPM
- Short-term fuel trim
- Long-term fuel trim
- Engine stability
- Road-test behavior
If the data and drivability improve, the contamination may have been affecting performance. If the readings remain implausible, continue diagnosis.
Do You Need to Reset or Relearn the MAF Sensor?
Some vehicles adapt fuel calculations over time. After cleaning or replacing a MAF sensor, the ECU may require a drive cycle to update learned values.
The need for a reset or relearn depends on the vehicle. Some systems adapt automatically, while others may require a scan-tool procedure.
Avoid disconnecting the battery as a universal solution. It may erase useful diagnostic information and reset unrelated systems.
Follow the manufacturer’s procedure and verify the repair through live data.
When Should You Replace the MAF Sensor?
Replacement should follow confirmation, not suspicion. A new sensor may be expensive, and an incorrectly diagnosed replacement can leave the original fault unresolved.
Consider replacement when:
- Power and ground are correct.
- The connector and wiring are in good condition.
- Intake leaks and airflow restrictions have been addressed.
- The sensor output is implausible, unstable, or nonresponsive.
- Cleaning does not restore correct operation.
- Vehicle-specific testing supports sensor failure.
OEM vs. Aftermarket MAF Sensors
Airflow sensors are calibrated components. A low-cost replacement may physically fit while producing inaccurate data.
Choose a reputable, vehicle-specific sensor that meets the required calibration. HELLA emphasizes vehicle-specific fit and accurate airflow measurement in its replacement-sensor guidance.
Why Calibration Matters
Small measurement errors can influence fuel calculations. A sensor that is electrically functional but incorrectly calibrated may still create drivability or fuel-trim problems.
Risks of Low-Quality Replacement Sensors
Potential concerns include incorrect calibration, poor connector fit, short service life, inconsistent output, and recurring diagnostic codes.
How Much Does MAF Sensor Testing or Replacement Cost?
Costs vary by vehicle, sensor design, location, and labor rate. A basic diagnostic inspection may cost less than a full electrical and live-data evaluation, while some integrated or premium vehicle sensors may be considerably more expensive.
The total cost may include:
- Diagnostic labor
- Sensor price
- Installation labor
- Intake-system repair
- Wiring repair
- Relearn or calibration procedures
A professional diagnosis may cost less than replacing the wrong part. The most economical repair is not always the one with the lowest initial component price.
Common MAF Sensor Testing Mistakes
Testing errors can produce false conclusions. The following mistakes are especially common.
Testing the Wrong Wire
Incorrect pin identification may lead to misleading readings or circuit damage.
Using Generic Readings as Exact Specifications
A universal voltage or airflow number should not override vehicle-specific information.
Ignoring Fuel Trims
MAF data should be evaluated alongside the ECU’s corrective response.
Testing Only at Idle
A sensor may appear normal at idle and fail under acceleration or load.
Replacing the Sensor Before Checking for Intake Leaks
Unmetered air can imitate an underreporting sensor.
Touching the Sensing Element
Physical contact may permanently damage the sensor.
MAF Sensor Test Results: What to Do Next
The result of each test should guide the next diagnostic step.
No power: Inspect fuses, relays, wiring, connectors, and control-system operation.
Poor ground: Repair the ground circuit and retest under operating conditions.
No valid signal: Confirm sensor type, connector pins, wiring, and manufacturer procedure.
Signal present but airflow appears inaccurate: Inspect the intake system and compare MAF data with fuel trims and other sensors.
Signal drops out: Inspect the connector and harness. Use an oscilloscope if necessary.
Data improves after cleaning: Verify performance through live data and a road test.
Data remains incorrect after complete testing: Replace the sensor with a properly calibrated, vehicle-specific part.
Frequently Asked Questions About Testing a MAF Sensor
How do you know if your MAF sensor is bad?
A bad MAF sensor may cause rough idle, hesitation, poor acceleration, reduced fuel economy, or diagnostic codes. These symptoms are not conclusive. Confirm the fault by inspecting the intake system, checking live airflow data, testing power and ground, evaluating signal response, and comparing MAF information with fuel trims and other engine data.
Can you test a MAF sensor with a multimeter?
Yes. A digital multimeter can test the sensor’s power supply, ground circuit, and certain analog or frequency outputs. However, a changing electrical signal does not prove that the sensor measures airflow accurately. Combine multimeter testing with scan-tool live data and vehicle-specific specifications for a more reliable diagnosis.
What voltage should a MAF sensor read?
There is no universal MAF voltage that applies to every vehicle. Sensor designs, signal strategies, engine configurations, and manufacturer calibrations differ. Use the correct wiring diagram and service specification. A voltage reading should also be evaluated while engine speed changes because a static measurement may not reveal response problems.
What should a MAF sensor read at idle?
A normal idle reading depends on engine size, temperature, altitude, RPM, and sensor calibration. A larger engine generally consumes more air than a smaller engine at the same idle speed. Use manufacturer specifications when available and compare airflow with fuel trims, engine load, and operating conditions.
Can you test a MAF sensor by unplugging it?
Unplugging the sensor may provide a diagnostic clue because the ECU can switch to estimated airflow values. If the engine runs better, the MAF may be reporting inaccurate information, but the result does not prove failure. Intake leaks, fueling problems, and other faults can produce similar changes in engine behavior.
Can a dirty MAF sensor cause a check engine light?
Yes. Dirt, oil, or other contamination may affect airflow measurement and cause the ECU to detect implausible data or excessive fuel correction. However, contamination should not be assumed to be the cause of every MAF-related code. Inspect the intake system, evaluate live data, and verify results after cleaning.
Can a bad MAF sensor cause a rough idle?
Yes. Incorrect airflow information may cause inappropriate fuel calculations and contribute to an unstable idle. However, vacuum leaks, ignition faults, fuel-delivery problems, incorrect temperature data, and mechanical engine issues can also cause rough idle. MAF data and fuel trims should be examined before replacing the sensor.
Can a MAF sensor fail without showing a code?
Yes. A sensor may remain electrically connected and produce a plausible signal while gradually becoming inaccurate. The ECU may compensate through fuel trims without immediately setting a diagnostic code. Poor performance, unusual fuel correction, or inconsistent airflow data may reveal a problem before a MAF-specific code appears.
Can a bad MAF sensor cause poor fuel economy?
Yes. If the sensor overreports airflow, the ECU may command more fuel than necessary. Incorrect airflow information can also affect engine-load calculations and operating efficiency. Poor fuel economy has many possible causes, so confirm the diagnosis using live data, fuel trims, and vehicle-specific testing before replacing the sensor.
Should you clean or replace a MAF sensor?
Clean the sensor when contamination is present and the manufacturer permits cleaning. Use only dedicated MAF cleaner and avoid touching the sensing element. Replace the sensor when testing confirms incorrect or unstable output, internal damage is evident, or cleaning does not restore accurate operation after intake and circuit faults are excluded.
Can a vacuum leak cause a MAF sensor code?
Yes. An intake leak after the MAF allows unmetered air into the engine. The ECU may detect airflow information that does not agree with fuel trims, load, or other sensor data and may set a range or performance code. Inspect the intake system before concluding that the sensor has failed.
Does a new MAF sensor need to be reset?
Some vehicles automatically adapt to a new sensor, while others may require a scan-tool reset, relearn procedure, or specific drive cycle. The correct process depends on the manufacturer. Follow vehicle-specific service information rather than disconnecting the battery automatically, because doing so may erase useful diagnostic information.
Can you drive with a bad MAF sensor?
A vehicle may continue operating with an inaccurate MAF sensor, but performance, fuel economy, emissions, and reliability may be affected. Some vehicles may enter reduced-power operation. Avoid extended driving when the engine stalls, misfires, loses power, or displays severe warning symptoms. Diagnose and repair the problem promptly.
How often should a MAF sensor be cleaned?
There is no universal cleaning interval. Cleaning should be based on inspection, symptoms, maintenance conditions, or manufacturer guidance. Frequent unnecessary cleaning may create risk without providing benefit. Maintaining a properly fitted air filter and preventing intake contamination are more important than cleaning the sensor on a fixed schedule.
Final Takeaway
Testing a MAF sensor is not about finding one magic voltage or replacing the component after a single trouble code. A reliable diagnosis examines the entire path from incoming air to ECU response.
The most dependable way to test a MAF sensor is to combine intake inspection, diagnostic codes, live airflow data, electrical circuit testing, fuel-trim comparison, and repair verification.
Start with the air filter, intake duct, sensor installation, and connector. Then use a scan tool to examine airflow under different operating conditions. Verify power, ground, and signal circuits with vehicle-specific information. Finally, compare the sensor’s data with fuel trims and other engine measurements.
When those pieces agree, the diagnosis becomes much stronger. When they conflict, the disagreement often points toward the real problem.
