A starter relay is a small component, but it sits at an important crossroads in the vehicle’s starting circuit. When it begins to fail, the result can range from a completely silent start attempt to intermittent cranking or a starter that refuses to disengage.
The most common symptoms of a bad starter relay are a no-crank condition, no response when starting, an unusual clicking sound, intermittent starting, inconsistent starter engagement, a starter that remains engaged after the engine starts, and heat or burning around the relay or fuse box. However, these symptoms can also come from a weak battery, corroded connections, a starter solenoid, ignition switch, fuse, wiring fault, or starter motor, so the symptom alone does not prove the relay has failed.
What Is a Starter Relay and What Does It Do?
The starter relay is essentially an electrically controlled switch that allows a relatively low-current control circuit to command a much higher-current starting circuit. In a conventional arrangement, the ignition or start-control circuit activates the relay, and the relay helps deliver power toward the starter system.
Think of the relay as a carefully finished electrical gate: a small command opens the path for a much larger flow of current. This arrangement prevents the ignition switch and smaller control wiring from having to carry the full electrical demand of the starter circuit.
The starting system also includes the battery, ignition switch or start button, starter relay, wiring, starter solenoid, starter motor, ground connections, and engine flywheel or flexplate. The exact architecture varies between vehicles. In some starter designs, the solenoid or engaging relay is integrated directly into the starter assembly rather than being a separate component in the fuse box.
That distinction matters when diagnosing a fault. A vehicle may have a separate starter relay, an integrated starter solenoid, or an electronic control arrangement that performs a similar function. Always use the vehicle’s wiring diagram or service information before assuming that every vehicle uses the same relay layout.
7 Symptoms of a Bad Starter Relay
A failing relay does not always announce itself dramatically. Some faults appear as a complete no-crank condition, while others emerge intermittently before the component finally stops working. The most useful approach is to observe exactly what happens when the starting command is made.
1. The Engine Does Not Crank When You Turn the Key
One of the clearest possible signs is a no-crank condition: you turn the key or press the Start button, but the engine does not rotate.
The dashboard and accessories may still operate because those systems require far less current than the starter motor. If the starter relay fails to pass the required electrical signal or current, the starter system may remain inactive even though the rest of the vehicle appears to have power.
But no crank does not automatically mean a bad relay. A discharged battery, loose battery terminal, poor ground, blown fuse, damaged wiring, ignition-switch problem, starter solenoid fault, or defective starter can produce the same basic symptom.
No crank means the engine is not being rotated by the starter; no start means the engine cranks but does not run. Keeping those two conditions separate is one of the most useful first steps in starting-system diagnosis.
2. Nothing Happens When You Press the Start Button
A completely silent start attempt can occur when the relay does not activate, but it can also mean the relay is never receiving the command it needs.
The starting signal may be interrupted by a fuse, ignition switch, wiring fault, neutral-safety or clutch-related interlock, immobilizer system, or electronic control module. In other words, a silent vehicle may have a defective relay—or a perfectly healthy relay waiting for a command that never arrives.
This is why replacing a relay simply because the vehicle is silent can become an expensive guessing game. The better question is whether the relay has the correct power and control signal at the appropriate terminals.
3. You Hear a Click but the Engine Does Not Crank
A click during a no-crank condition deserves careful interpretation. A relay can click because its electromagnetic coil is activating while its switching contacts fail to deliver the required electrical path.
However, clicking is not a relay-only symptom. A weak battery, poor battery connection, starter solenoid, or starter motor can also create clicking or clunking noises. Rapid repeated clicking, for example, is commonly associated with insufficient battery voltage, while a single heavy click can point toward the starter or its high-current circuit.
The useful diagnostic question is therefore not simply, “Does it click?” Instead ask: What kind of click is it, does the engine crank, and does battery voltage remain adequate during the starting attempt?
4. The Vehicle Starts Intermittently
Intermittent starting is one of the more frustrating electrical faults because the vehicle can behave perfectly normally immediately after refusing to start.
A relay with worn or contaminated contacts can sometimes make a reliable electrical connection and sometimes fail to do so. Heat can also expose marginal relay behavior; some relays work when cold and become unreliable as temperature rises.
Still, intermittent starting has a broad differential diagnosis. Battery terminals, grounds, wiring, ignition switches, starter solenoids, and starter motors can all produce similar patterns. If tapping, waiting, cycling the key, or trying repeatedly changes the result, record that behavior rather than treating it as proof of a relay fault.
5. The Starter Engages Briefly or Behaves Erratically
A starter that engages inconsistently can indicate a problem somewhere in the control or high-current starting circuit.
The relay may be failing to maintain a clean electrical connection, but the fault could also lie farther downstream. A starter solenoid, for example, has its own switching and mechanical engagement functions, and starter assemblies can develop electrical or mechanical faults. HELLA notes that starter problems can involve electrical connections, solenoid switches, motors, pinion components, or the freewheel mechanism.
This is an important diagnostic boundary: abnormal starter engagement identifies a starting-system problem, not necessarily the relay itself.
6. The Starter Keeps Running After the Engine Starts
This is the symptom that deserves the greatest urgency.
If the starter continues operating after the engine has fired and the starting command has been released, a relay or other control component may be stuck in an energized state. HELLA specifically identifies a faulty ignition switch or relay as a possible cause and advises switching the engine off immediately.
Do not treat this as an ordinary intermittent starting problem. A starter is designed for short periods of operation during engine cranking, not continuous operation after the engine is running. Continued engagement can damage the starter system and related components.
If the starter remains engaged, shut the engine down as safely and promptly as possible and have the starting circuit inspected.
7. Heat, Burning Odor, or Visible Relay and Connector Damage
Electrical heat around the relay or fuse box can be another warning sign. A relay with damaged contacts, excessive resistance, a poor connection, or an overloaded circuit may generate abnormal heat.
A melted relay housing, darkened terminal, distorted plastic, corrosion, or an electrical burning smell should never be dismissed as merely an old relay. The underlying problem may involve the relay socket, wiring, connection resistance, or excessive current demand.
Replacing only the relay can provide a temporary improvement while leaving the real electrical fault untouched. AutoZone identifies burning odor and melted relay housing among possible signs of relay overheating.

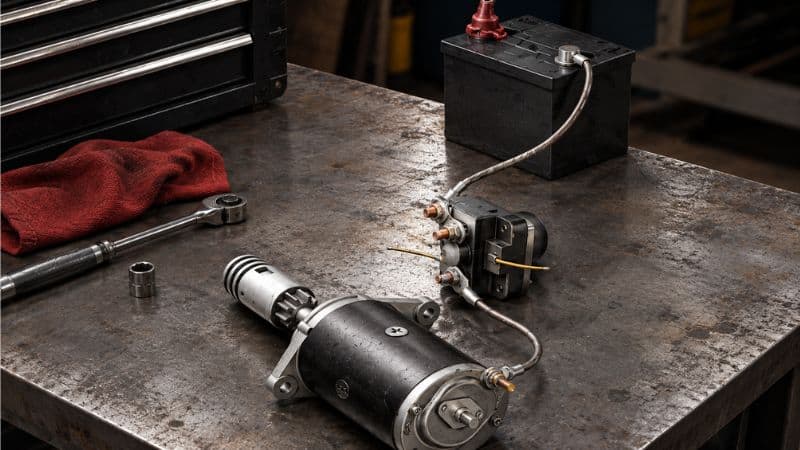

Bad Starter Relay vs. Bad Battery vs. Bad Starter
Because several components share the same starting circuit, symptoms overlap. The most valuable diagnostic skill is therefore distinguishing what the vehicle is doing from what you assume has failed. If the relay passes its checks but the engine still will not crank, the next logical step is to learn how to test a starter and evaluate the downstream starting circuit.
Bad Starter Relay vs. Weak Battery
A weak battery can produce a no-crank condition even when the relay is perfectly healthy. Rapid clicking, dimming electrical accessories, or a noticeable drop in electrical performance during a starting attempt can point toward insufficient battery power.
Because a weak battery can closely mimic a relay failure, compare these symptoms with the most common bad battery symptoms before replacing the relay.
A relay problem becomes more plausible when the battery and connections are known to be healthy but the relay fails to switch the circuit correctly.
The first principle is simple: verify the battery and its connections before condemning a small electrical component. HELLA likewise emphasizes checking the battery, positive connections, and ground connections when diagnosing starter faults.
If the battery repeatedly becomes discharged, the problem may extend beyond the starting circuit, so checking for alternator failure symptoms can help identify a charging-system problem.
Bad Starter Relay vs. Bad Starter Motor
The starter motor is responsible for physically turning the engine. A defective starter can therefore create a no-crank condition even when the relay is operating correctly.
If the relay tests correctly and the appropriate voltage reaches the starter during a starting attempt, attention should move downstream toward the solenoid, starter motor, cables, and ground path.
A starter can also develop internal problems involving brushes, windings, commutators, or mechanical engagement components.
Bad Starter Relay vs. Starter Solenoid
The terms starter relay and starter solenoid are often used interchangeably in casual conversation, but they are not always the same component.
A starter relay generally controls the electrical path toward the starting system. The starter solenoid, depending on vehicle design, may be mounted directly on the starter and perform both electrical switching and mechanical engagement of the starter pinion. HELLA describes the engaging relay or solenoid switch as part of the starter assembly in many designs.
That means a “bad starter relay” diagnosis should always account for the vehicle’s specific architecture.
Bad Starter Relay vs. Ignition Switch
The ignition switch or electronic start-control system supplies the command that ultimately initiates starting. If that command never reaches the relay, a healthy relay can appear completely dead.
A vehicle that produces no response when the key is turned can therefore have a fault upstream of the relay. Wiring, interlock systems, fuses, or control modules may also prevent the starting command from reaching the relay.
Bad Starter Relay vs. Blown Fuse or Bad Wiring
A relay cannot compensate for an open fuse, corroded connector, broken wire, or poor ground.
This is particularly important when a new relay does not solve the problem. A damaged relay socket or high-resistance connection can continue interrupting the circuit even after the relay itself has been replaced.
If a replacement relay changes nothing, stop replacing relays and trace the circuit. Automotive electrical diagnosis works best when each component is tested as part of the complete circuit rather than in isolation.
How to Test a Starter Relay
Testing the relay is more reliable than diagnosing it by symptoms alone. Start with the easiest checks and move toward electrical testing only when the basic condition of the vehicle is known.
Step 1 — Check the Battery First
Before removing a relay, verify that the battery is adequately charged and that the positive and negative connections are clean and secure. Before blaming the relay, it is worth learning how to test a car battery properly, because a weak battery can imitate several starter-relay symptoms.
A battery can have enough energy to illuminate dashboard electronics while still being unable to provide the current required by the starter. Loose or oxidized connections can create similar symptoms by restricting current flow. HELLA recommends including battery voltage and the starter’s positive and ground connections in starting-system diagnosis.
Step 2 — Locate the Starter Relay
The starter relay is commonly located in a fuse or relay box, often under the hood, although layouts vary considerably by vehicle. Some vehicles also have interior fuse boxes.
Use the owner’s manual, fuse-box diagram, or manufacturer service information to identify the correct relay. Do not assume that a relay with a similar appearance performs the same function.
Step 3 — Inspect the Relay and Socket
Remove the relay and inspect both the component and the socket.
Look for corrosion, discoloration, loose terminals, melted plastic, moisture, damaged wiring, or evidence of overheating. A damaged socket is especially important because installing a new relay into a compromised connection may not solve the fault.
This visual inspection is often overlooked, yet it can reveal a problem before a multimeter ever touches the circuit.
Step 4 — Try a Known-Good Relay Swap
If the vehicle uses another relay with an identical part number and compatible specifications, a relay swap can provide a useful preliminary check. AutoZone describes this as one of the quickest ways to investigate a suspected relay fault.
If the starting problem follows the suspect relay, the relay becomes a much stronger suspect. If nothing changes, investigate the rest of the circuit.
Never swap components solely because they look alike. Confirm that the replacement relay has the correct specifications and terminal arrangement.

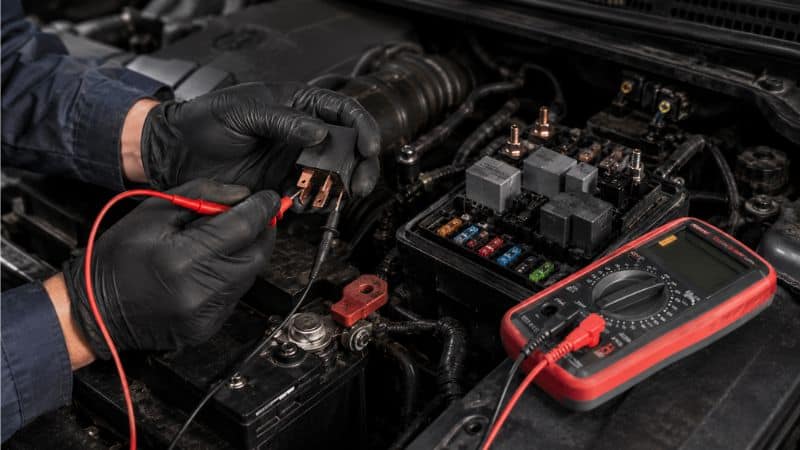

Step 5 — Test the Relay With a Multimeter
A multimeter can test the relay’s coil and switching contacts. Standard automotive relay numbering often includes terminals such as 85, 86, 30, and 87, but configurations vary.
For a conventional relay, the coil terminals can be checked for resistance, while the switching terminals can be checked for continuity in their unpowered and energized states. AutoZone provides typical test procedures for standard relay configurations.
Do not treat one resistance number as universal. Relay design and specifications vary, so the vehicle or relay manufacturer’s service information should take priority over a generic value.
Step 6 — Interpret the Test Results
A relay with an open coil, a shorted coil, or contacts that fail to switch appropriately is a strong candidate for replacement.
But a relay that passes a bench test is not automatically the end of the diagnosis. The relay must also receive the correct control signal and have the necessary power available at its socket.
That is the difference between testing a component and diagnosing a circuit. If the relay works on the bench but the starter remains inactive, the next step is to trace power, control, ground, wiring, solenoid, and starter operation.
What Causes a Starter Relay to Fail?
Starter relays operate through repeated electrical switching, and their contacts can eventually deteriorate. Heat, contamination, corrosion, moisture, excessive electrical load, or damaged connections can accelerate that process.
Burned or Pitted Relay Contacts
Repeated switching can create electrical arcing at relay contacts. Over time, damaged or contaminated contacts may develop enough resistance to prevent reliable current flow.
The relay may still click while failing to deliver the electrical performance required by the starting circuit.
Corrosion or Moisture
Moisture and corrosion can affect both the relay and its socket. Corroded terminals increase resistance and can create intermittent electrical behavior.
This is why inspecting the socket is just as important as inspecting the relay itself.
Excessive Heat and Electrical Load
Heat can degrade relay materials and electrical connections. An overloaded or poorly connected circuit can make the relay run hotter than intended.
If a replacement relay repeatedly overheats, investigate the circuit rather than treating the relay as the only problem.
Damaged Wiring or Relay Socket
A relay socket with loose, burned, or corroded terminals can interrupt current even when the relay is functioning normally.
Replacing the relay without repairing the socket is therefore similar to replacing a light bulb while leaving a damaged electrical connection untouched.
Age and Repeated Electrical Cycling
Relays are mechanical-electrical switching devices, and repeated operation eventually subjects their internal components to wear. Intermittent failure can appear before complete failure, particularly when contacts or internal connections are deteriorating.
Can You Drive With a Bad Starter Relay?
A failing starter relay can leave you with an unreliable vehicle that starts one moment and refuses to crank the next. The immediate practical risk is often being stranded, but a relay that remains energized is a more serious condition.
If the electrical fault develops into an unexpected stall, understanding why a car shuts off while driving can help you recognize when the problem requires immediate attention.
If the starter continues running after the engine starts, switch the engine off immediately and have the relay, ignition control, solenoid, and related circuit checked. HELLA specifically lists a faulty ignition switch or relay among causes of a starter that continues running and advises immediate shutdown.
An intermittent no-crank problem should also be diagnosed before it becomes a complete failure.
How Much Does It Cost to Replace a Starter Relay?
A starter relay is generally a relatively inexpensive component compared with a complete starter assembly, but the total repair cost depends on the vehicle, relay type, access, diagnostic labor, and whether the relay socket or wiring is also damaged.
The part itself may be inexpensive, but professional electrical diagnosis can cost more than the relay because the technician is determining whether the relay is actually responsible.
The most economical repair is therefore not always the cheapest part. Confirming the failed component before replacement is what prevents unnecessary parts spending.
If the relay is confirmed defective and the socket and wiring are healthy, replacement is usually straightforward. If the relay passes testing, spending money on another relay is unlikely to solve the underlying problem.
When Should You Replace the Starter Relay?
A starter relay should generally be replaced when testing demonstrates that its coil or switching contacts are faulty, or when an appropriate diagnostic process confirms that the relay itself is responsible for the starting problem.
Replacement is also reasonable when the relay has obvious physical damage, such as melted plastic or severely burned contacts. However, visible damage should trigger a second question: why did the relay become damaged?
If the relay fails repeatedly, inspect the socket, wiring, power supply, ground path, and electrical load. If the relay tests normally, move the diagnosis elsewhere instead of replacing it repeatedly.

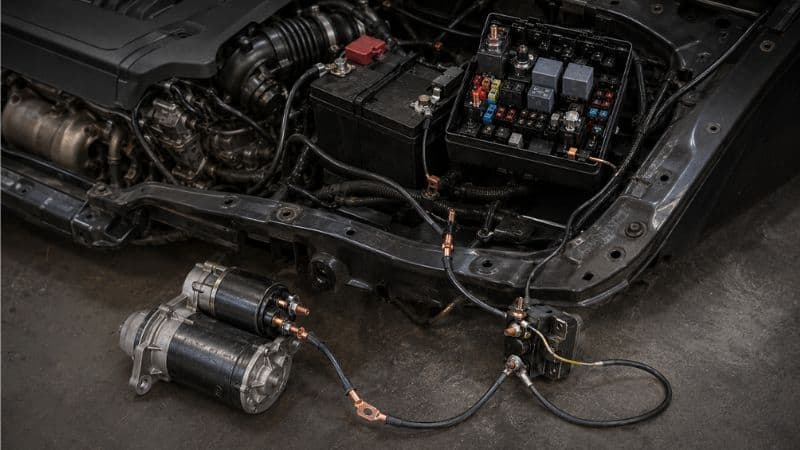

A Quick Diagnostic Decision Tree
When a vehicle refuses to start, use the starting behavior as a guide rather than jumping directly to a replacement part.
Turn the key or press Start.
Does the engine crank?
- Yes: The starter relay is less likely to be the primary cause. Investigate fuel, ignition, engine-management, immobilizer, or other no-start causes.
- No: Continue through the starting circuit.
Do you hear a click?
- No: Check battery condition, battery connections, fuse, start signal, relay control circuit, and wiring.
- Yes: Check battery voltage and connections, then evaluate relay output, starter solenoid, cables, grounds, and starter operation.
Does the starter remain engaged after the engine starts?
- Yes: Treat the condition as urgent. Shut the engine off and inspect the relay, ignition control, solenoid, and starter circuit.
The core principle is simple: symptoms identify the circuit area; testing identifies the failed component.
FAQs About Bad Starter Relays
What are the most common symptoms of a bad starter relay?
Common symptoms include a no-crank condition, no response when starting, a click without engine cranking, intermittent starting, inconsistent starter engagement, a starter that remains engaged, or burning around the relay. These symptoms are not exclusive to relay failure, so battery voltage, connections, wiring, the starter solenoid, and starter motor should also be considered during diagnosis.
Can a bad starter relay cause a car not to start?
Yes. A failed starter relay can prevent the starter circuit from receiving or passing the electrical signal needed for cranking, resulting in a no-crank condition. However, a vehicle that will not start may have a weak battery, damaged wiring, faulty ignition switch, starter solenoid, blown fuse, or defective starter. Testing the starting circuit is necessary before identifying the relay as the cause.
Can a bad starter relay cause clicking?
It can, but clicking does not prove the relay is defective. A relay may click when its coil activates while its contacts fail to carry the necessary current. Clicking can also result from a weak battery, poor electrical connections, a starter solenoid problem, or a starter fault. The type of click and electrical measurements provide more useful diagnostic information.
How do you test a starter relay?
A starter relay can be checked visually, swapped with an identical known-good relay, or tested with a multimeter. Multimeter testing can evaluate the relay coil and switching contacts, while circuit testing confirms whether the relay receives the required control signal and power. Always follow the vehicle or relay manufacturer’s specifications because terminal layouts and electrical characteristics vary between designs.
How do I know if my starter relay or starter is bad?
Start by confirming battery condition and checking the relay and its socket. If the relay receives the correct control signal but fails to switch power, it becomes a strong suspect. If relay output is correct but the starter still does not operate, investigate the starter solenoid, cables, grounds, and starter motor. A no-crank symptom alone cannot distinguish these components reliably.
Can a starter relay fail intermittently?
Yes. Relay contacts or internal connections can deteriorate in ways that cause intermittent operation. Temperature can also expose marginal electrical behavior, allowing a relay to work when cold but fail after heating. However, intermittent starting can also result from battery connections, grounds, wiring, ignition switches, solenoids, or starters. Recording exactly when the failure occurs can make diagnosis considerably easier.
Can a bad battery cause the same symptoms as a bad starter relay?
Yes. A weak battery can produce a no-crank condition and clicking sounds that resemble relay or starter problems. Battery terminals and ground connections can create similar symptoms when corrosion or looseness restricts current flow. For that reason, battery condition and connections should be checked early in the diagnostic process rather than assuming the relay is responsible.
What causes a starter relay to fail?
Starter relays can develop faulty contacts, coil problems, corrosion, heat damage, or connection problems. Moisture, repeated electrical cycling, excessive load, and damaged relay sockets can contribute to failure. If a replacement relay fails again quickly, the relay itself may not be the underlying problem; inspect the circuit, wiring, socket, power supply, and electrical load for a continuing fault.
Can a starter relay get stuck on?
Yes. A relay can develop contacts that remain closed instead of opening when the starting command ends. If the starter continues running after the engine has started, however, the relay is not the only possible cause; an ignition switch or starter solenoid can also create continued engagement. Shut the engine off promptly and have the starting circuit inspected.
Is a starter relay the same as a starter solenoid?
Not necessarily. A starter relay generally controls the electrical path that initiates the starting process, while a starter solenoid can perform switching and mechanical engagement functions at the starter itself. Vehicle designs differ, and some terminology is used inconsistently. The safest approach is to identify the components shown in the specific vehicle’s wiring diagram or service information.
Can I replace a starter relay myself?
A relay can often be replaced relatively simply when it is an accessible plug-in component and the correct replacement is known. The more difficult part is confirming that the relay is actually defective. Before replacement, inspect the socket, check battery condition, and use the vehicle’s wiring information when necessary. If wiring or electrical faults are suspected, professional diagnosis may be safer.
When should a starter relay be replaced?
Replace the starter relay when testing confirms a failed coil, defective switching contacts, or other internal fault. Physical damage such as melted housing or burned contacts is also a strong reason for replacement. However, investigate the relay socket and surrounding circuit at the same time. Repeated relay failure can indicate an unresolved wiring, connection, load, or control-system problem.
Wrap Up
A bad starter relay can cause anything from a silent no-crank condition to intermittent starting, clicking, or abnormal starter engagement. Because these symptoms overlap with battery, wiring, solenoid, ignition-switch, and starter problems, the symptom alone should never be treated as a definitive diagnosis.
The most reliable approach is to work through the starting circuit systematically: check the battery and connections, inspect the relay and socket, test the relay, and then trace power and control signals toward the starter. This approach helps prevent unnecessary parts replacement and identifies faults that a simple relay swap can miss.
If the starter remains engaged after the engine starts, or you notice burning, melting, or severe electrical overheating around the relay, treat the problem as urgent. A properly tested diagnosis is ultimately more valuable than replacing components based on symptoms alone.
